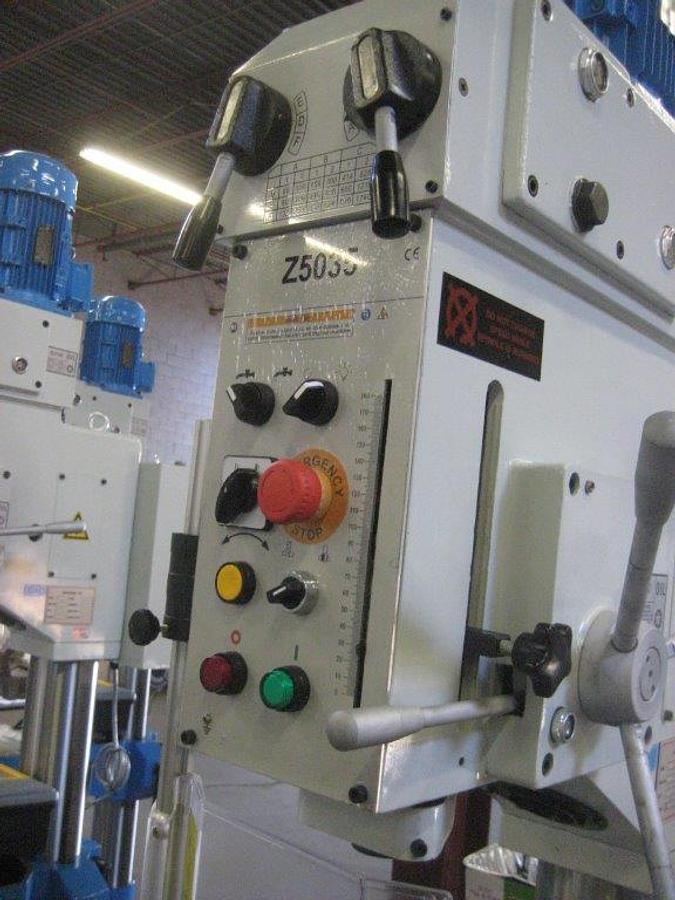

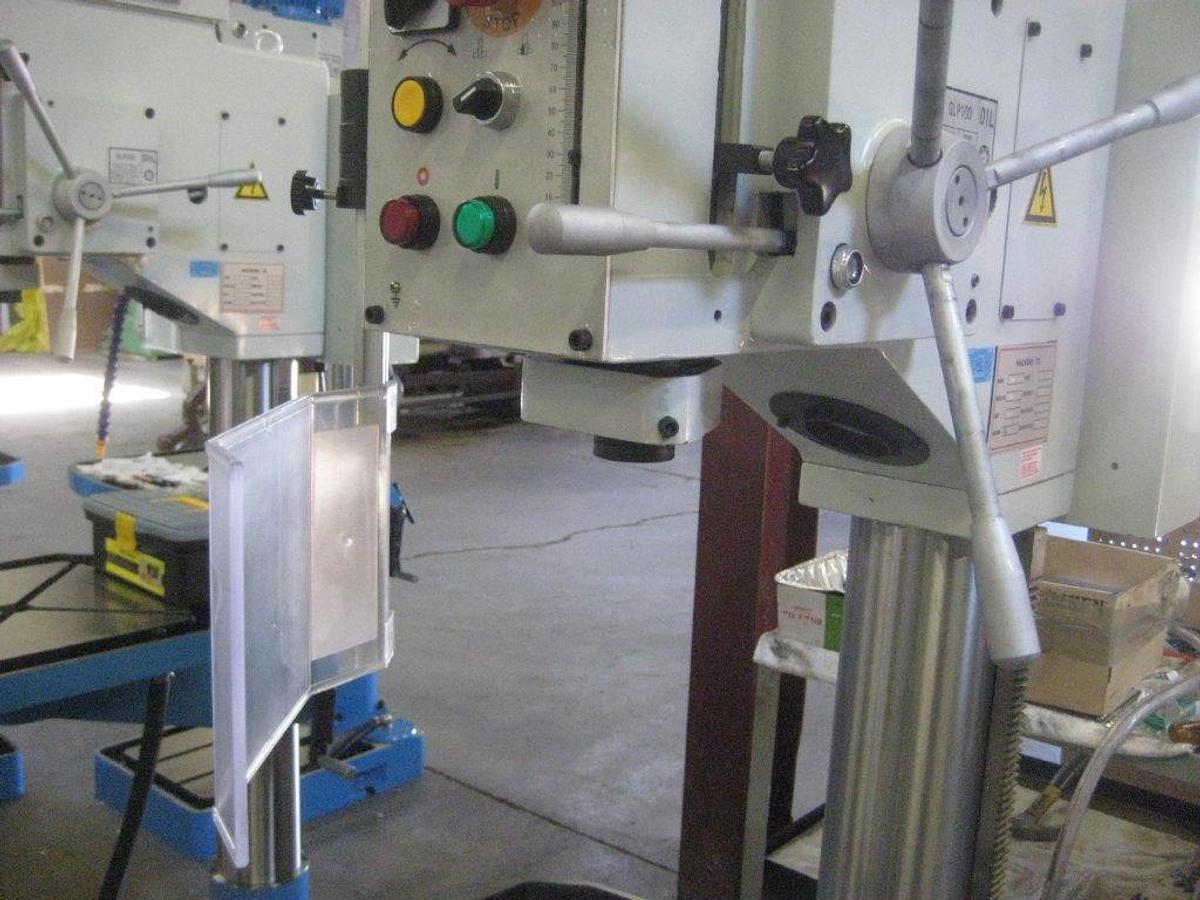

"NEW", DRILLMASTER, GEARED HEAD DRILLING MACHINE, W/ POWER QUILL FEED
or
Call (905) 669-7507
Specifications
| Manufacturer | DRILLMASTER |
| Model | ZN5035B |
| Stock Number | 3473 |
| DRILLING CAPACITY - MILD STEEL | 1-3/8" |
| SPINDLE TRAVEL | 7-1/8" |
| SPINDLE SPEEDS | 60 - 1740 RPM |
| SPINDLE TAPERS | MT 4 |
| COLUMN DIAMETER | 5-1/2" |
| WORK TABLE SIZE | 22" X 15" |
| SPINDLE MOTOR | 2 HP |
| NO. OF POWER FEEDS (2) | .004" - .007" |
| DISTANCE SPINDLE TO COLUMN | 11" |
| DISTANCE SPINDLE TO BASE PLATE | 52" |
| MACHINE WEIGHT | 1,200 LBS. |
Equipped With
CLEAR SPINDLE SHIELD WITH SAFETY SWITCH
COOLANT SYSTEM
BUILT-IN DRILL EJECTOR
WORK LIGHT
MANUAL ELEVATION OF TABLE ELECTRICS 575V/3/60 CSA
WARRANTY: PARTS - All non-wearing mechanical & electrical PARTS carry a ONE YEAR guarantee against defects in material and workmanship. LABOUR - One Year "ON SITE" labour is provided for machine delivered within 50 kms of our office. Travel time and mileage beyond 50 kms are not included in our Warranty and is the Buyers responsibility.
