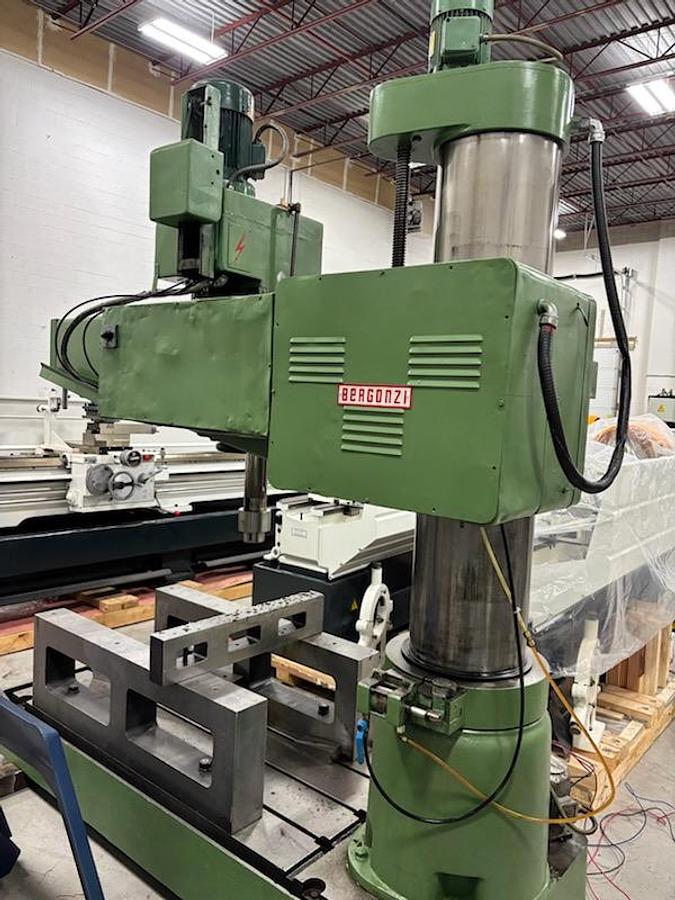

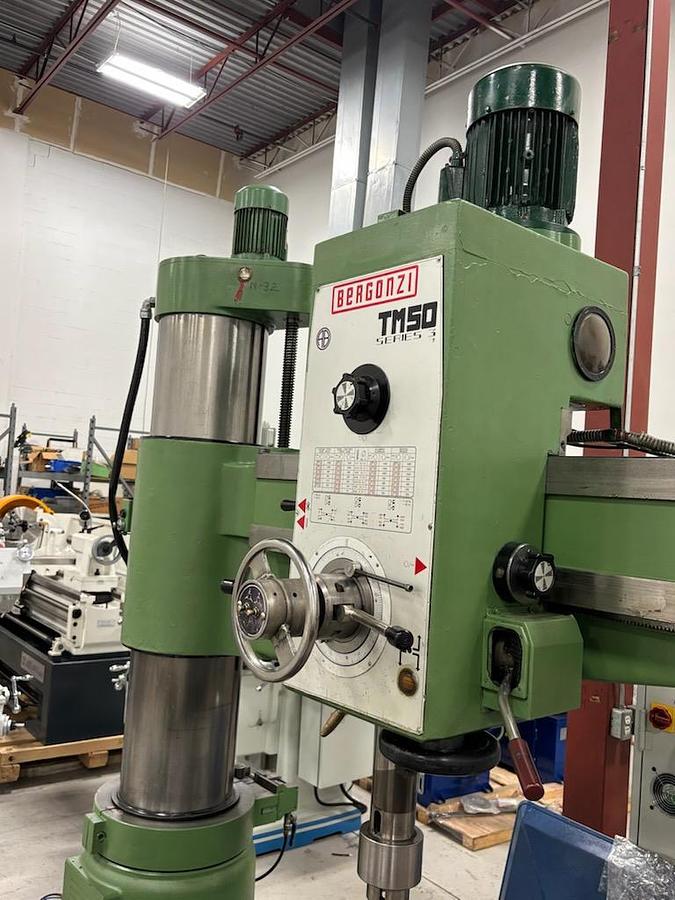

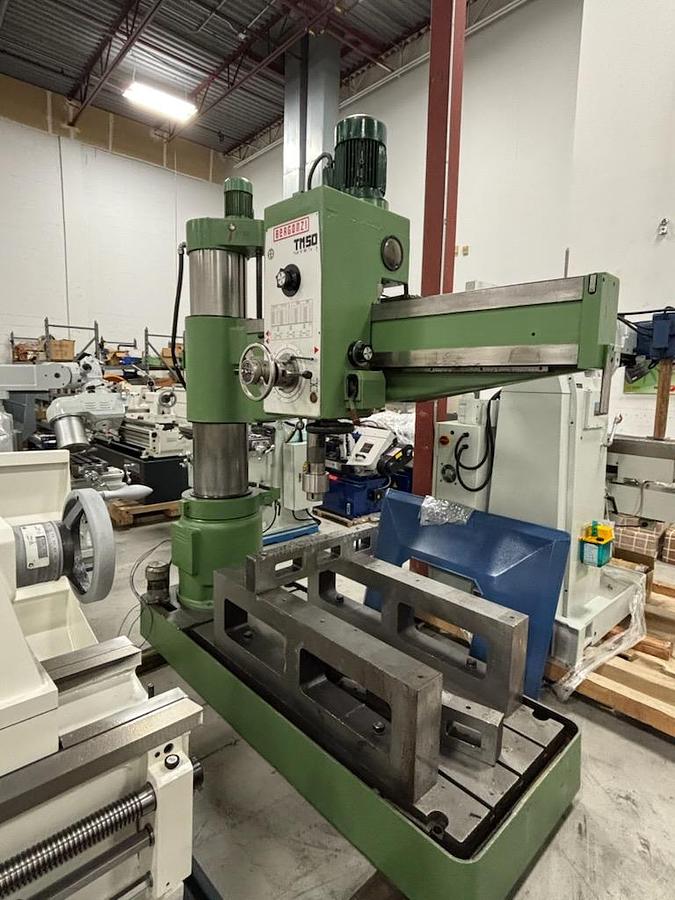

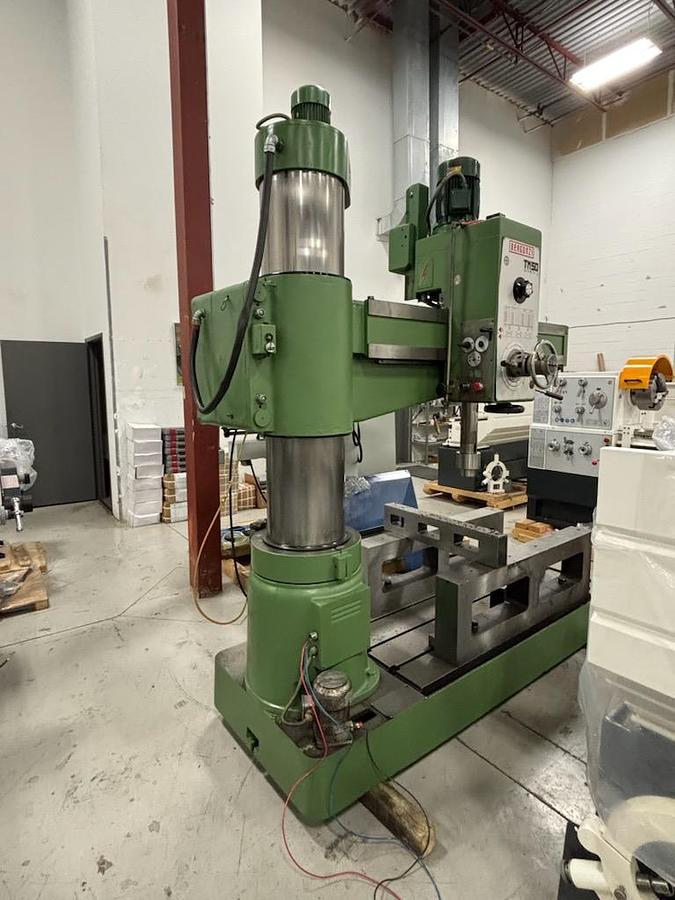

5' ARM, BERGONZI, MODEL TM50/1600, RADIAL ARM DRILL
Specifications
| Manufacturer | BERGONZI |
| Model | TM50/1600 |
| Stock Number | 4664 |
| DRILLING CAPACITY - CAST IRON | 2-9/16" |
| DRILLING CAPACITY - STEEL | 2" |
| DISTANCE SPINDLE TO COLUMN FACE | 63" |
| HEAD LONGITUDINAL TRAVEL ALONG ARM | 51" |
| COLUMN DIAMETER | 13-3/8" |
| SPINDLE SPEEDS ( 12 ) | 30 - 1400 RPM |
| SPINDLE FEEDS | YES |
| SPINDLE TAPER | 5 MT |
| SPINDLE TRAVEL | 11-7/8" |
| SPINDLE MOTOR | 5 HP |
| NET WEIGHT | 6,900 LBS. |
Equipped With
POWER ELEVATION
FIXTURE BLOCKS
COOLANT SYSTEM
The Bergonzi TM50/1600 is a used radial arm drill equipped with a 5-foot arm. It is designed for versatile industrial drilling applications, capable of handling a drilling capacity of 2-9/16 inches in cast iron and 2 inches in steel. The machine features hydraulic clamping and power elevation to the arm, enhancing operational efficiency and ease of use. It also includes a coolant system and a box table to support a variety of drilling tasks. With a spindle speed range of 30 to 1400 RPM across 12 different speeds, the TM50/1600 provides flexibility for various drilling requirements. The spindle motor is powered by 5 HP, and the spindle taper is 5 MT, with a travel length of 11-7/8 inches. The distance from the spindle to the column face is 63 inches, and the head can travel longitudinally along the arm 51 inches. The column diameter of this drill is 13-3/8 inches, ensuring sturdy performance. This machine operates with 550V/3/60 electricity, making it suitable for high-demand industrial settings. With a net weight of 6,900 lbs., the machine is a robust and reliable choice for businesses requiring efficient and precise drilling capabilities.
