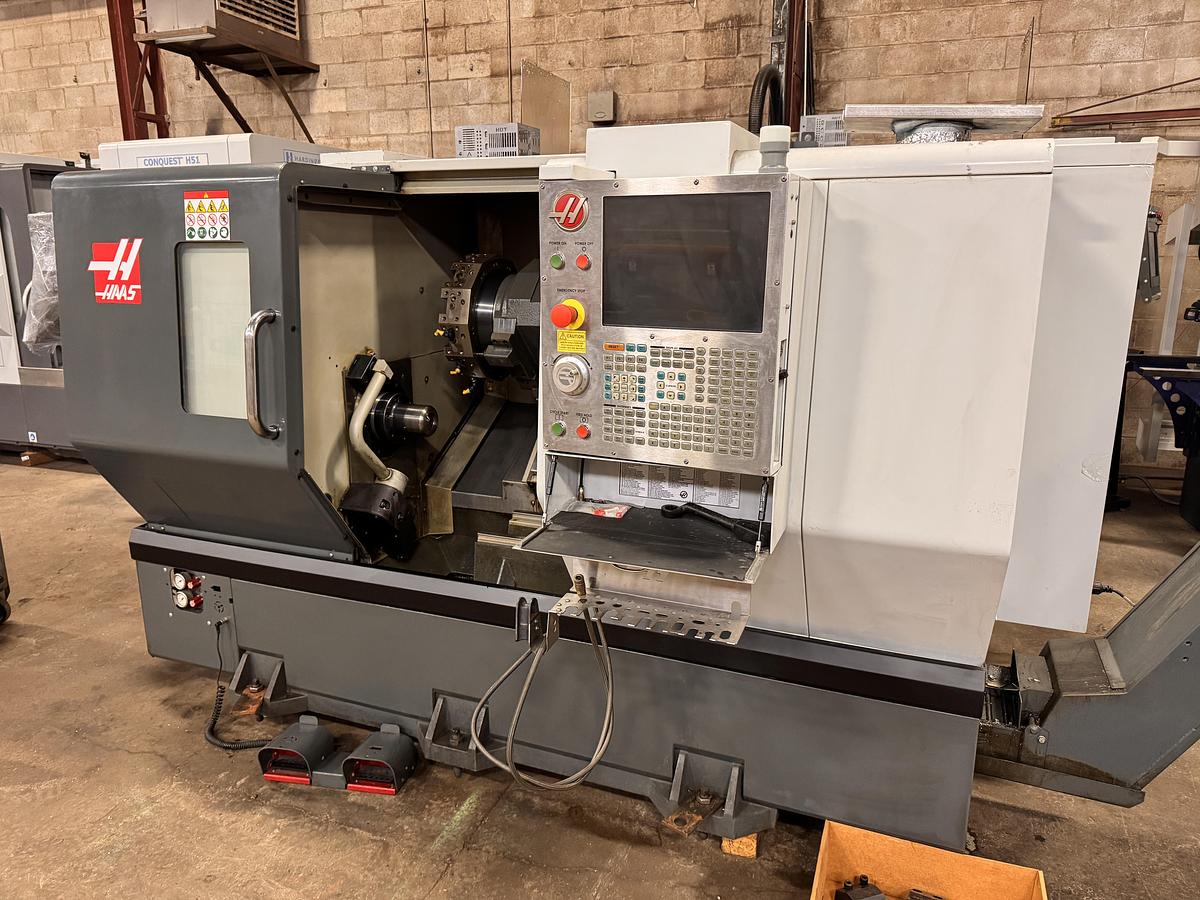

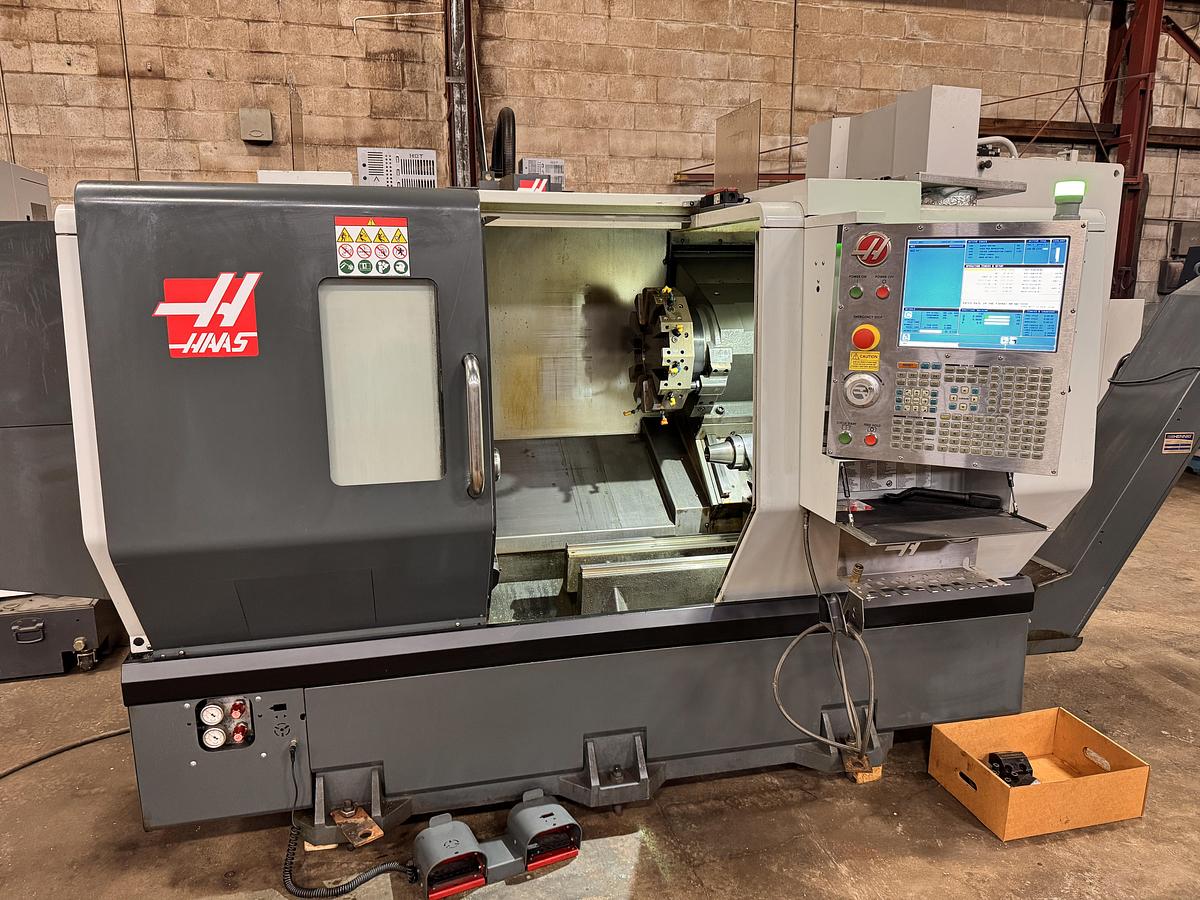

HAAS, ST-25, 2017, CNC LATHE
Specifications
| Manufacturer | HAAS |
| Model | ST-25 |
| Year | 2017 |
| Stock Number | 4925 |
| Max. Part Swing | 21" |
| Max. Cutting Diameter | 11.75" |
| Max. Cutting Length | 22.5" |
| Bar Capacity | 3" |
| Travels - X-axis | 8.4" |
| Travels - Z-axis | 22.5" |
| Rapid Feedrate on X | 945 ipm |
| Rapid Feedrate on Z | 945 ipm |
| Max. Thrust X | 4100 lbf |
| Max. Thrust Z | 5100 lbf |
| Spindle Nose | A2-6 |
| Max. Rating | 30 Hp |
| Max. Speed | 3,400 rpm |
| Max. Torque | 300.0 ft-lbf @ 500 rpm |
| Spindle Bore | 3.5" |
| No. of Tools | 12 station |
| Boring Bar Rear Clearance (from back of turret ) | 4" |
| Coolant capacity | 55 Gal. |
| Approx. Weight | 9,000 lbs. |
Equipped With

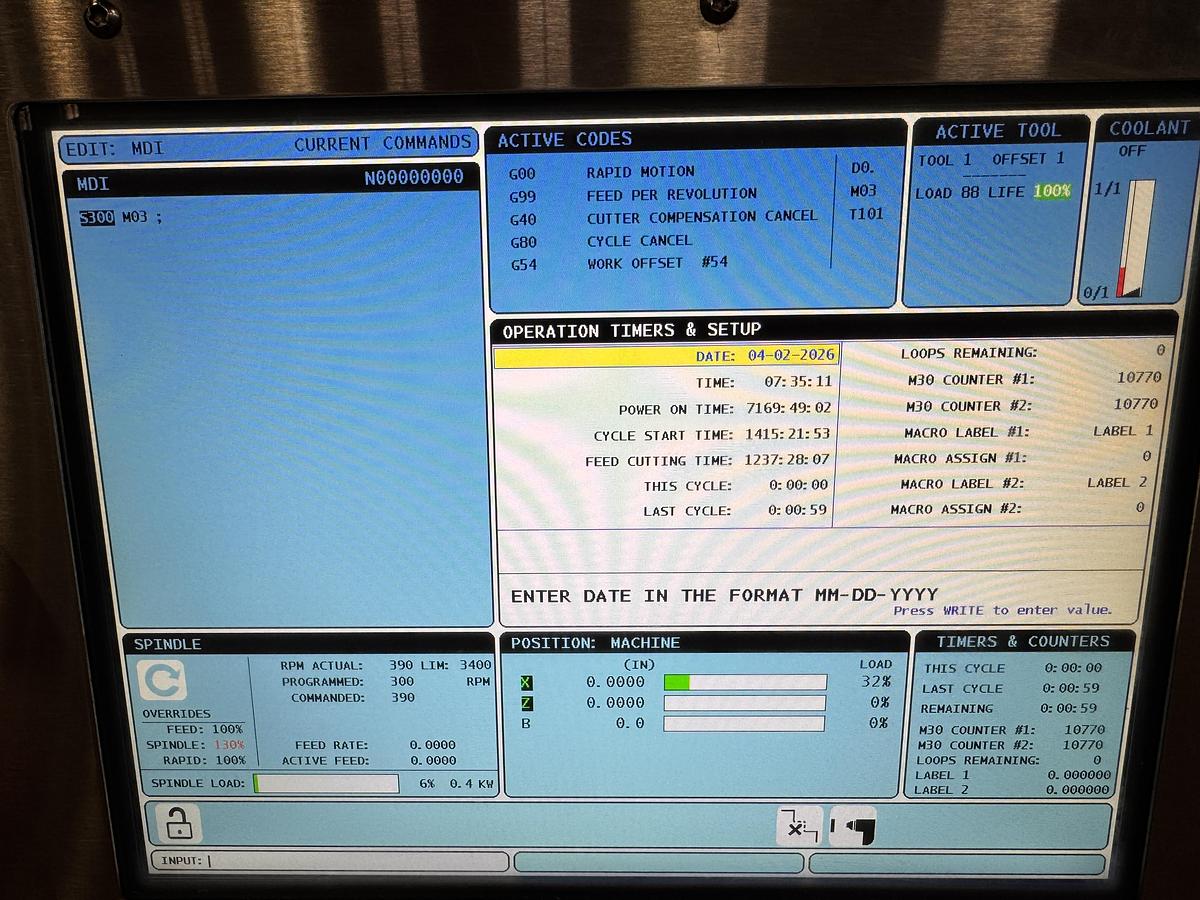

FEED CUTTING TIME: 1,237 HRS.
HAAS CNC CONTROL

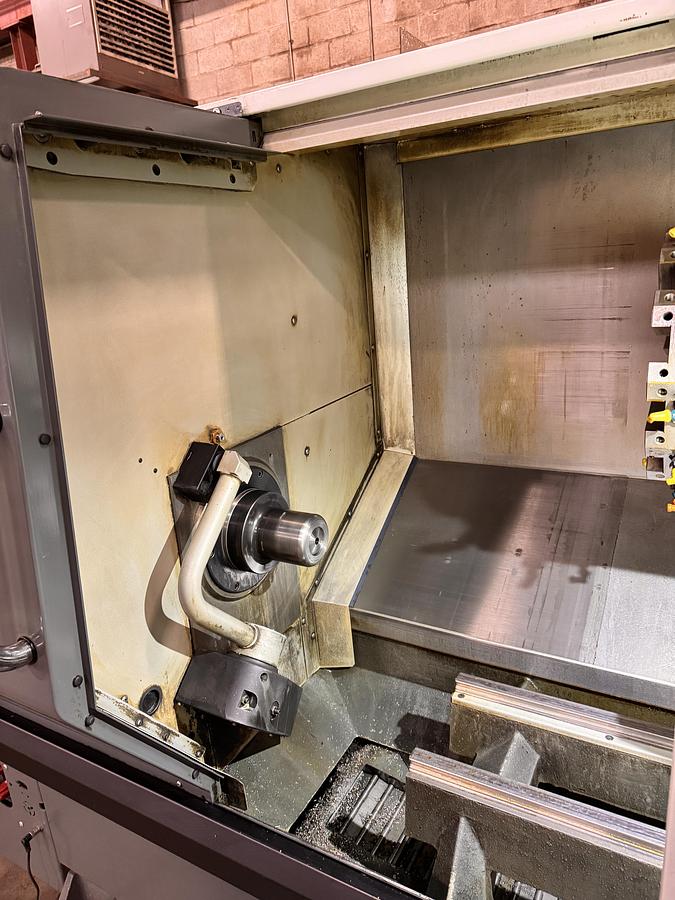

COLLET CHUCK
RIGID TAPPING
TOOL PRESETTER
12 STN TURRET
HYDRAULIC TAILSTOCK
CHIP CONVEYOR
The 2017 HAAS ST-25 CNC lathe is a well-maintained used machine, notable for its efficient performance and precision capabilities. Featuring a feed cutting time of 1,237 hours, the lathe is equipped with HAAS CNC control, a collet chuck, and a tool presetter for enhanced operational accuracy. Its 12-station turret and hydraulic tailstock ensure robust versatility in handling various machining tasks. With a maximum part swing of 21 inches and a bar capacity of 3 inches, the machine accommodates larger workpieces with ease. The ST-25 offers a maximum cutting diameter of 11.75 inches and a cutting length of 22.5 inches. The spindle is capable of reaching a maximum speed of 3,400 rpm, powered by a 30 Hp motor that delivers a maximum torque of 300.0 ft-lbf at 500 rpm. Its travels on the X-axis and Z-axis are 8.4 inches and 22.5 inches, respectively, with rapid feedrates of 945 ipm on both axes. The lathe's additional features include rigid tapping, a chip conveyor, and a 55-gallon coolant capacity, ensuring efficient long-term operation. Weighing approximately 9,000 lbs, this sturdy machine is built for durability and precision in a range of industrial applications.
