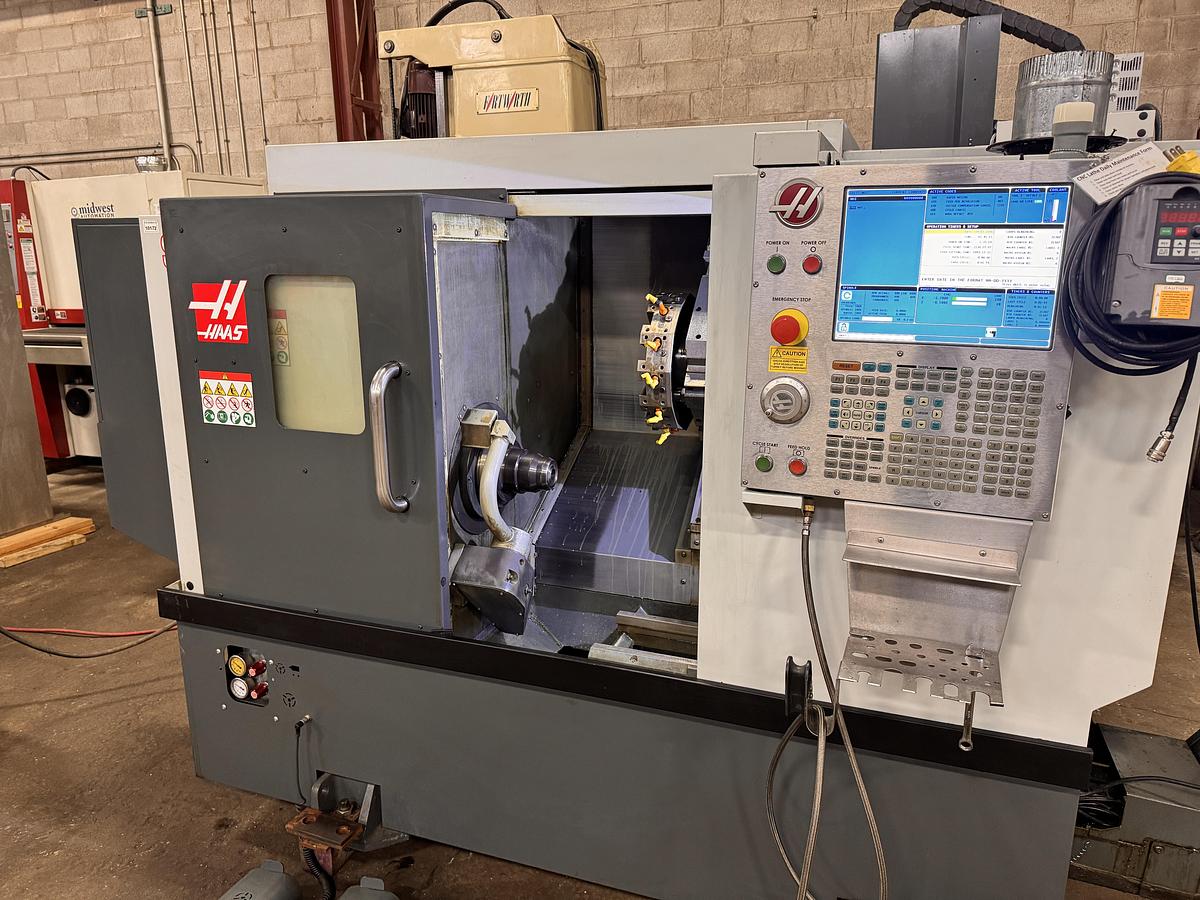

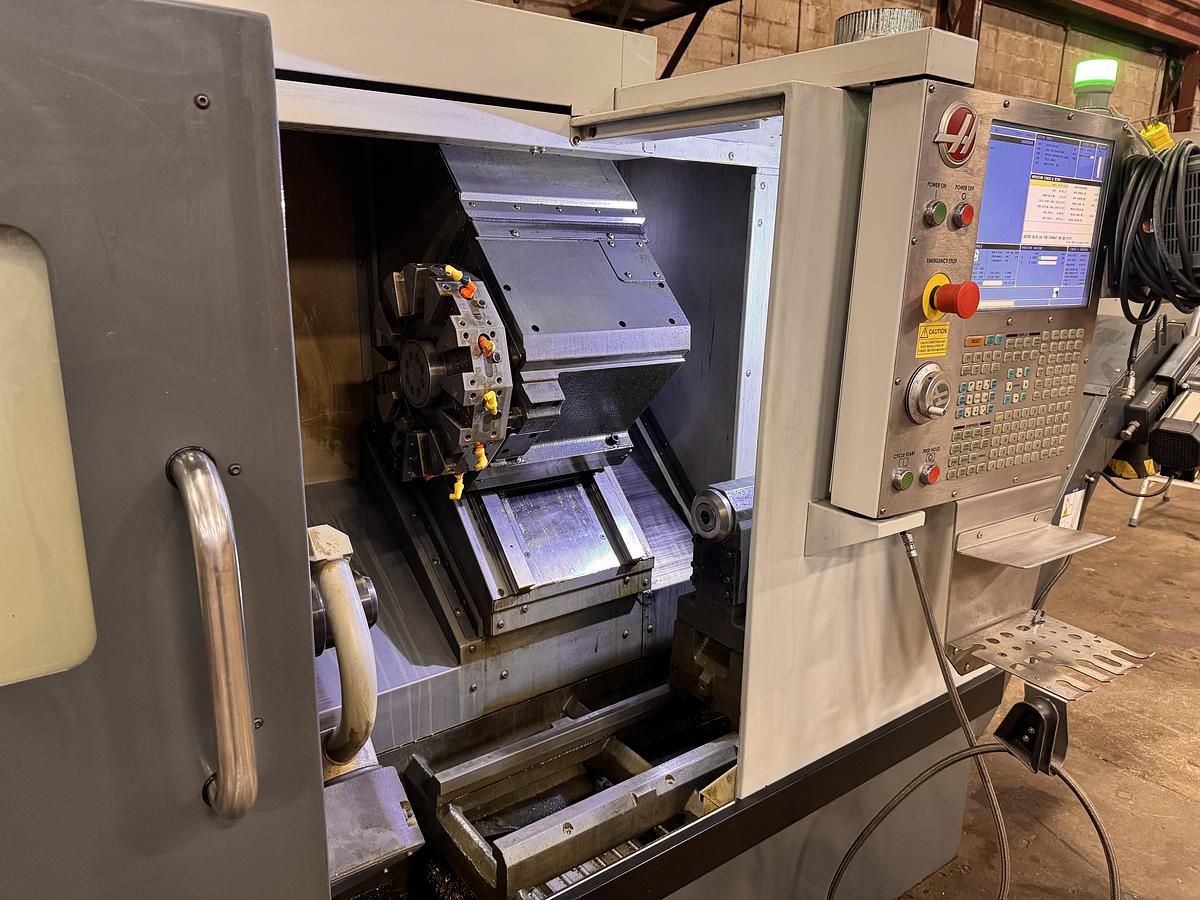

HAAS, ST-15, 2017, CNC LATHE
or
Call (905) 669-7507
Specifications
| Manufacturer | HAAS |
| Model | ST-15 |
| Year | 2017 |
| Stock Number | 4926 |
| CHUCK SIZE | 8.3" |
| MAX. PART SWING | 16.5" |
| MAX. CUTTING DIAMETER | 12" |
| MAX. CUTTING LENGTH (VARIES W/WORKHOLDING) | 16" |
| BAR CAPACITY | 2.5" |
| X-AXIS TRAVEL | 7.9" |
| Z-AXIS TRAVEL | 16" |
| RAPIDS ON X & Z | 1200 IPM |
| SPINDLE NOSE | A2-6 |
| MAX. RATING | 20 HP |
| MAX. SPEED | 4000 RPM |
| SPINDLE BORE | 3.5" |
| TAILSTOCK TAPER | MT3 |
| HYDRAULIC QUILL TRAVEL | 3.8" |
| APPROX. WEIGHT | 7,900 LBS. |
Equipped With

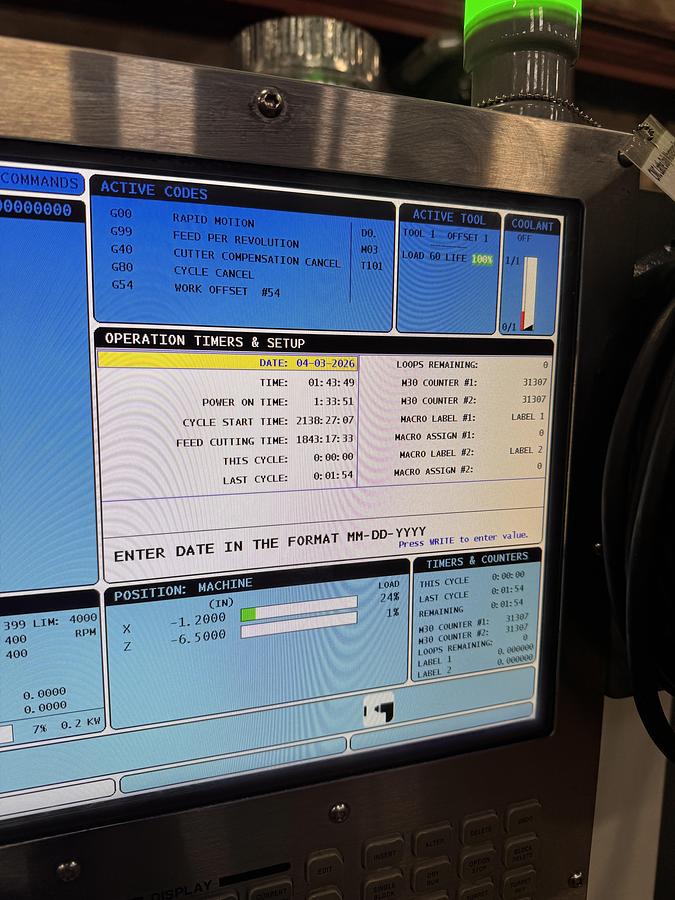

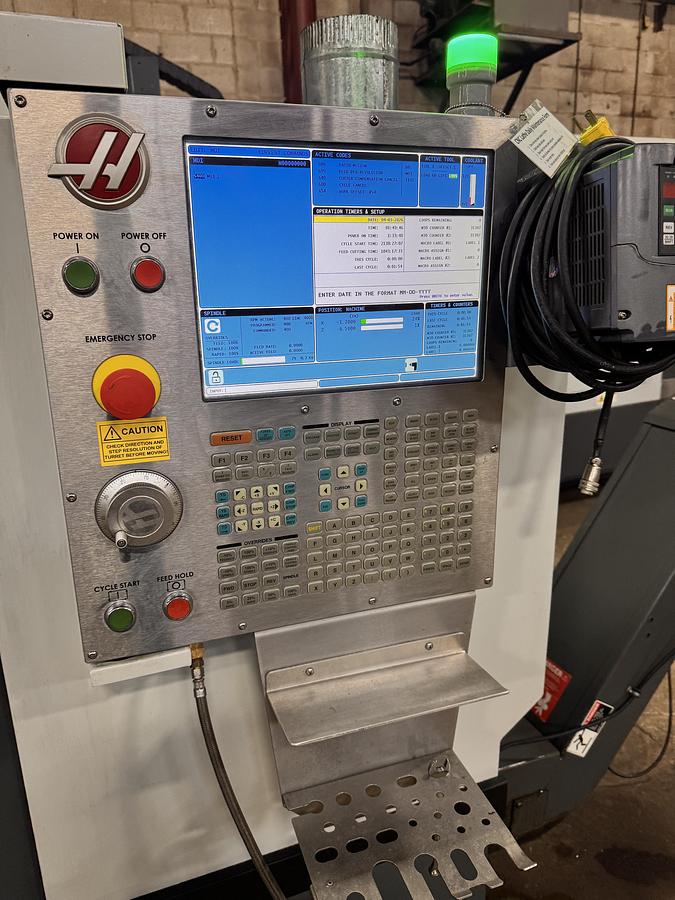

HAAS CNC CONTROL
AUTO DOOR
RIGID TAPPING
TAILSTOCK
CHIP CONVEYOR
TOOL PRESETTER

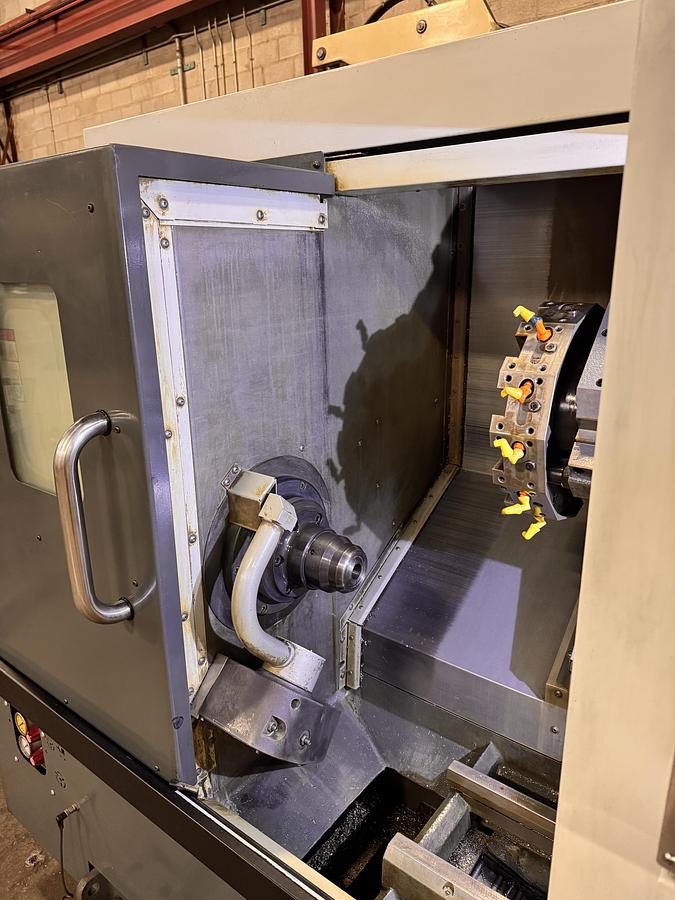

COLLET CHUCK
