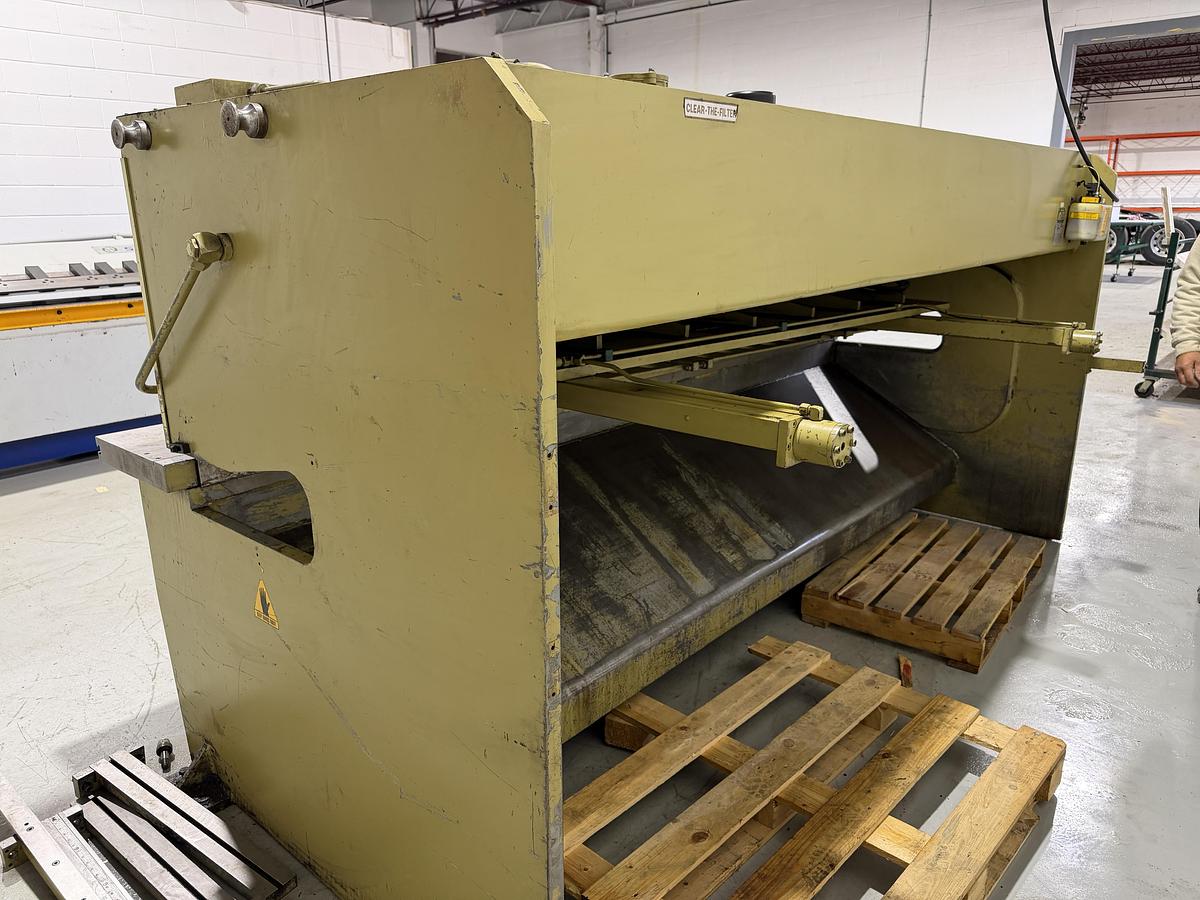

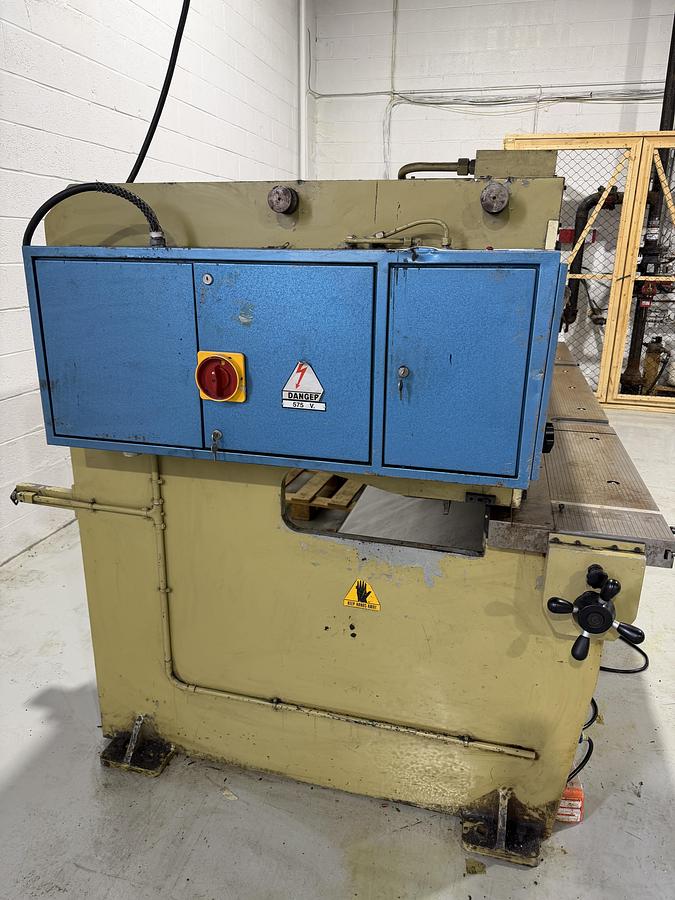

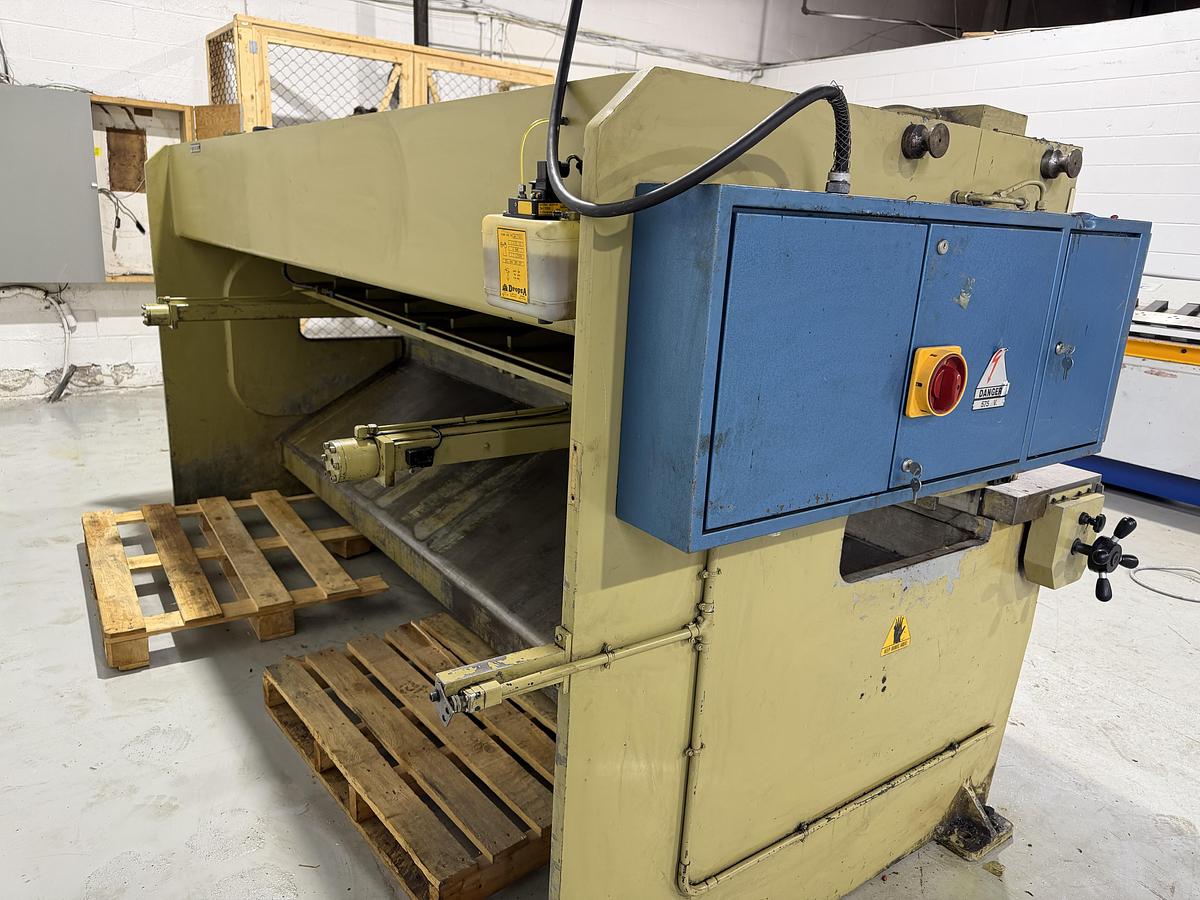

10 GA X 10' FARINA, HYDRAULIC SHEAR

or
Call (905) 669-7507

Specifications

ManufacturerFARINA
ModelCFO303
Stock Number4929
OVERALL CUTTING LENGTH10'
MAX. CUTTING CAPACITY - MS10 GAUGE
THROAT DEPTH20"
NO. OF HOLD DOWNS18
ELECTRICS575V/3/60
APPROX. WEIGHT OF SHEAR14,500 LBS.

Equipped With

FRONT OPERATED POWER BACKGAUGE

SQUARING ARMS

SUPPORT ARMS

HYDRAULIC RAKE ANGLE ADJUSTMENT

BLADE GAP ADJUSTMENT



The Farina CFO303 is a reliable used hydraulic shear designed for high-performance cutting. It features a front-operated power backgauge and includes squaring and support arms for improved accuracy and ease of operation. The shear's cutting length extends up to 10 feet, and it can handle a maximum cutting capacity of 10 gauge mild steel. This model comes equipped with hydraulic rake angle adjustment and blade gap adjustment, providing users with the ability to accommodate various cutting requirements efficiently. The shear has a 20" throat depth and is stabilized with 18 hold-downs to ensure precision in each cut. With a power requirement of 575V/3/60, the Farina CFO303 is robustly constructed, weighing approximately 14,500 lbs., suitable for demanding industrial environments. This makes it an excellent option for operators seeking reliability and precision in their metal cutting processes.
