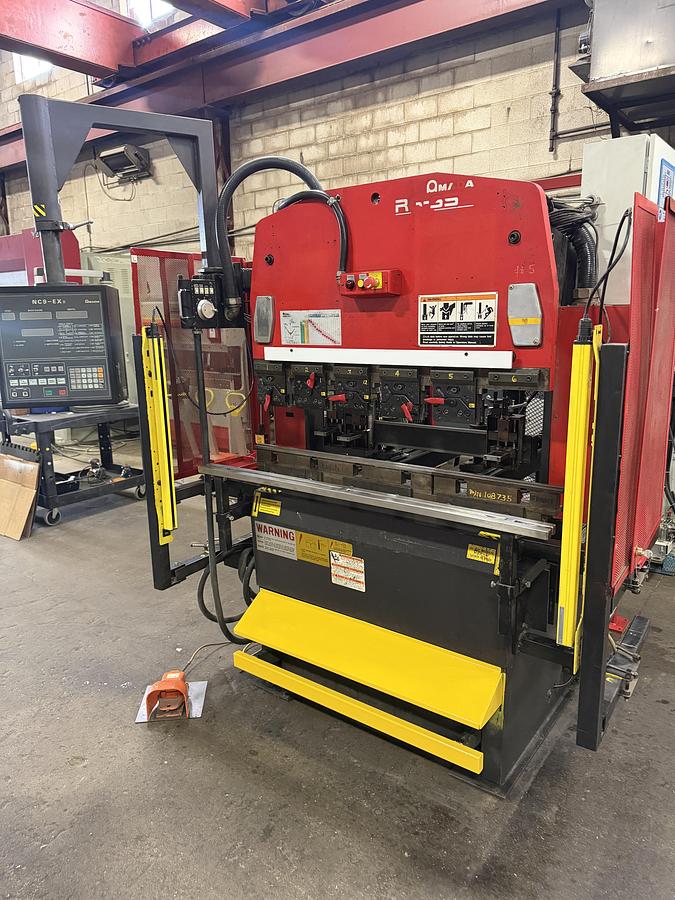

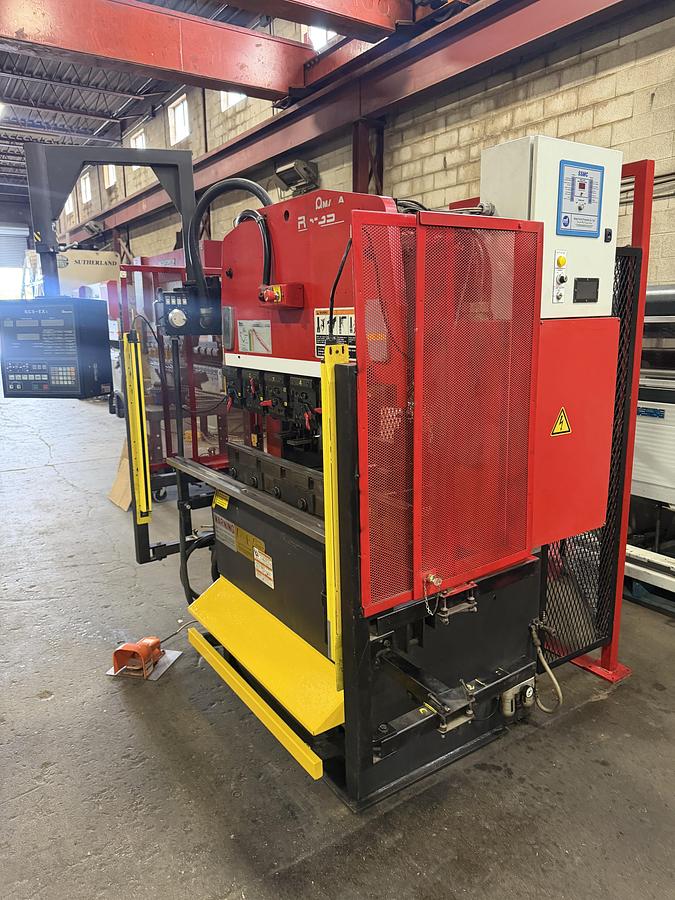

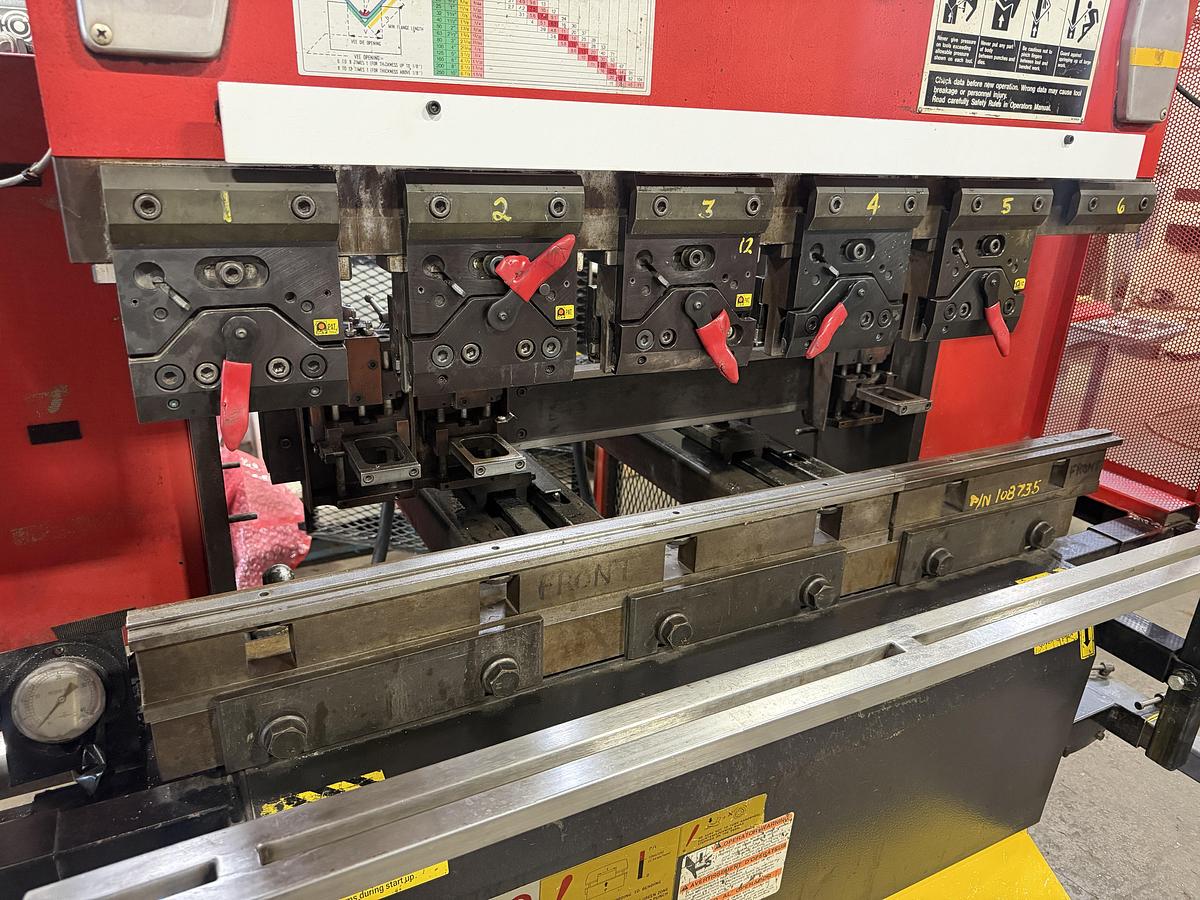

38 TON x 4', AMADA RG-35S, CNC HYDRAULIC PRESS BRAKE

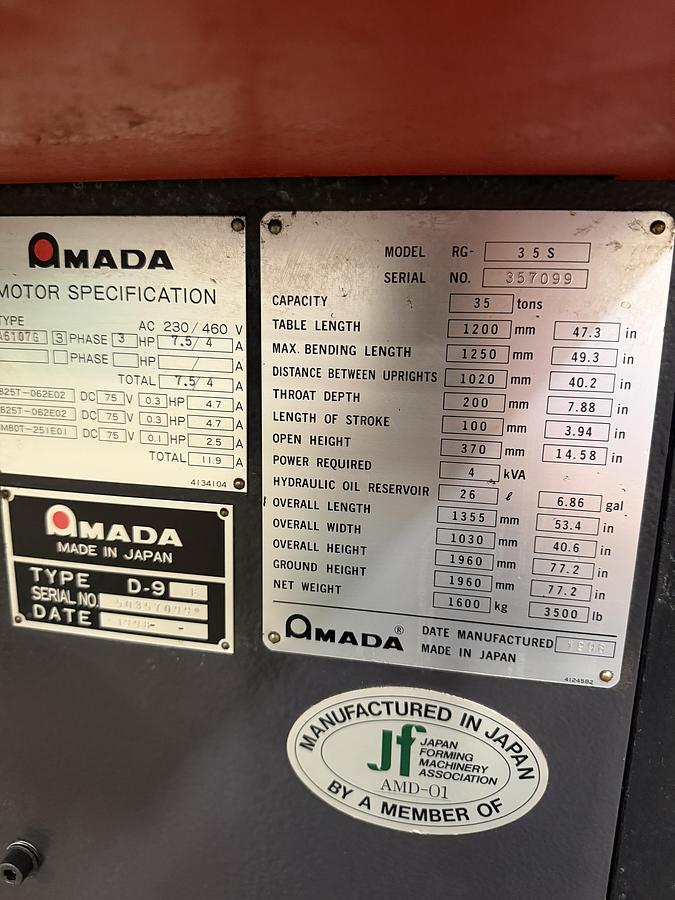

Specifications
| Manufacturer | AMADA |
| Model | RG-35S |
| Year | 1998 |
| Stock Number | 10049 |
| CAPACITY | 38 TONS |
| TABLE LENGTH | 47.3" |
| MAX BENDING LENGTH | 49.3" |
| DISTANCE BETWEEN UPRIGHTS | 40.2" |
| THROAT DEPTH | 7.88" |
| LENGTH OF STROKE | 3.94" |
| OPEN HEIGHT | 14.58" |

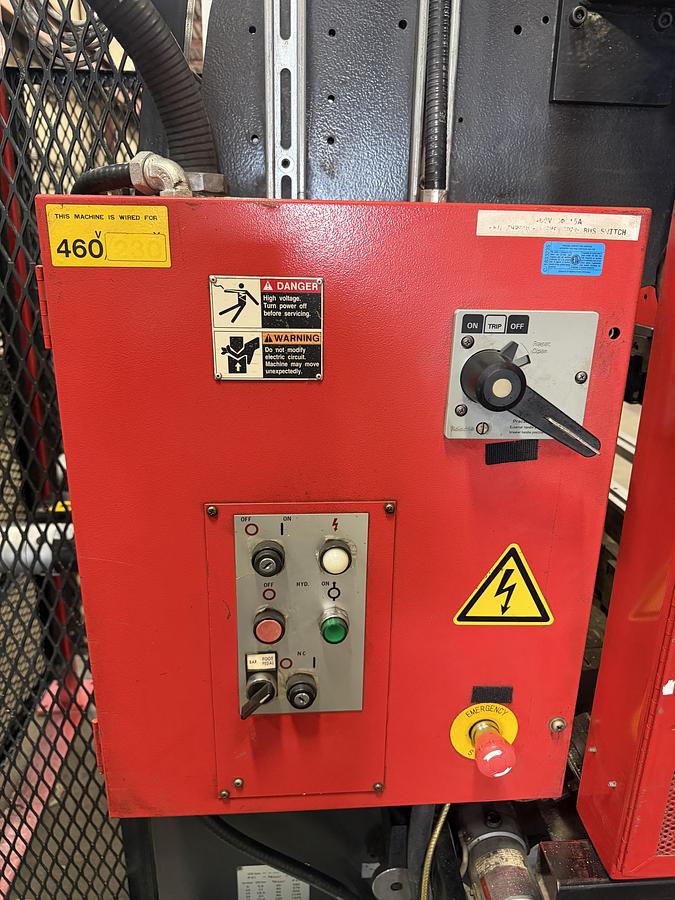

| ELECTRICS | 460/3/60 |
| MACHINE WEIGHT | 3500 LB |
Equipped With

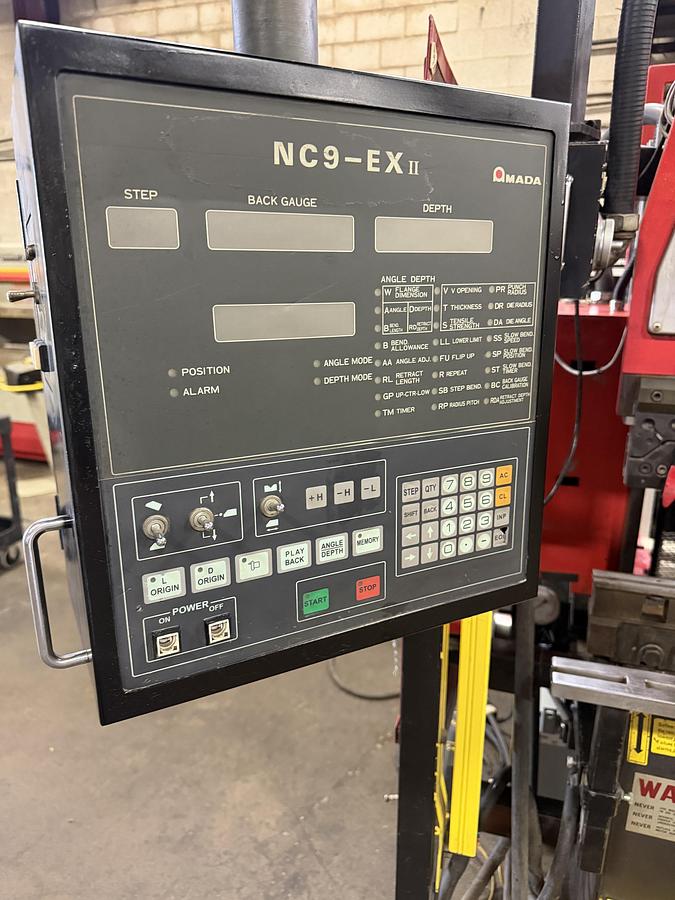

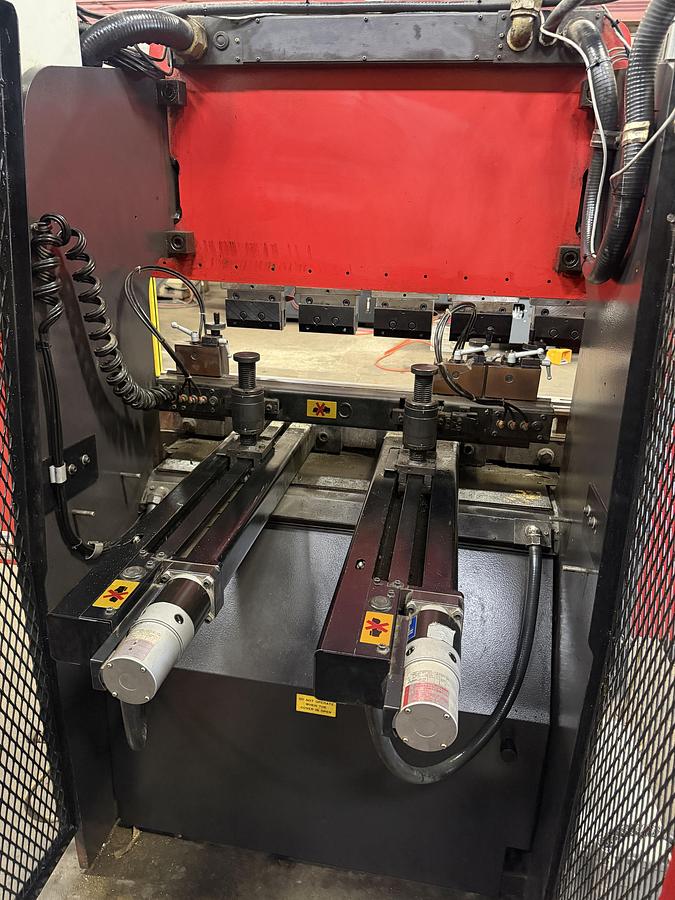

NC-9EX II CNC 3-AXIS BACKGAUGE/CONTROL
3 BACKGAUGE FINGERS

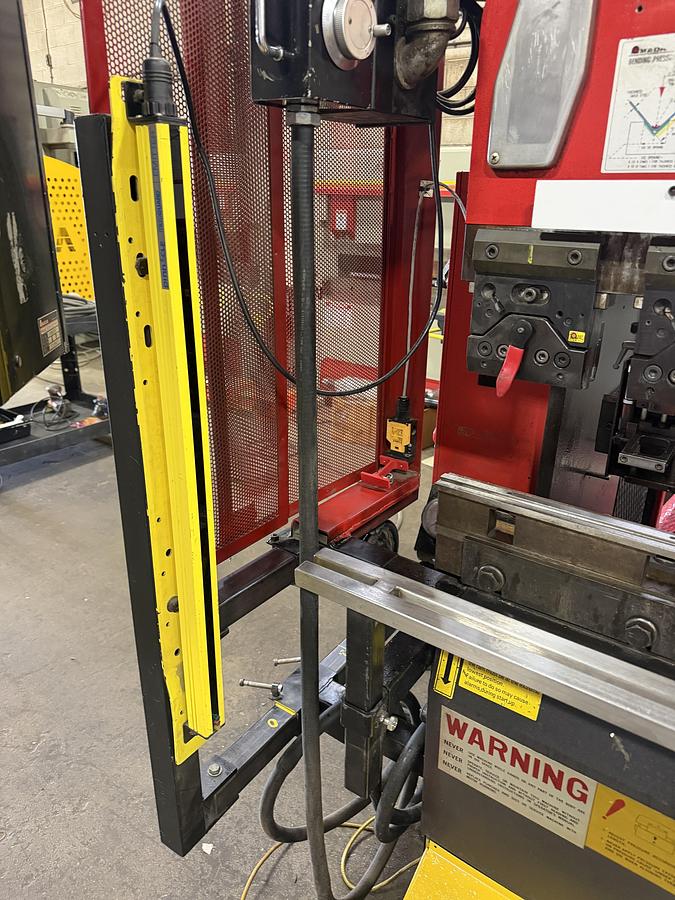

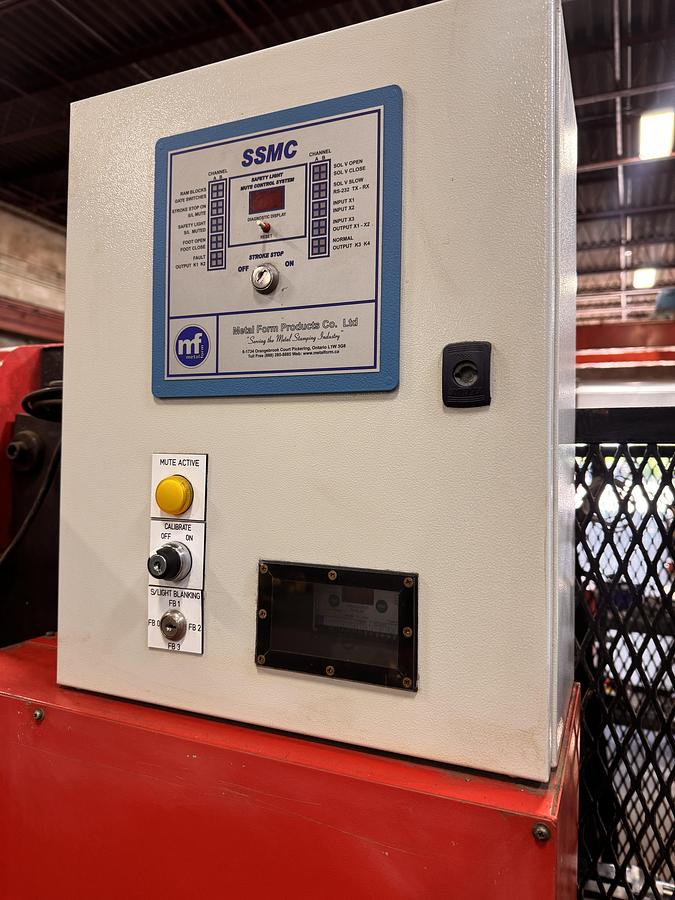

SAFETY LIGHT CURTAINS

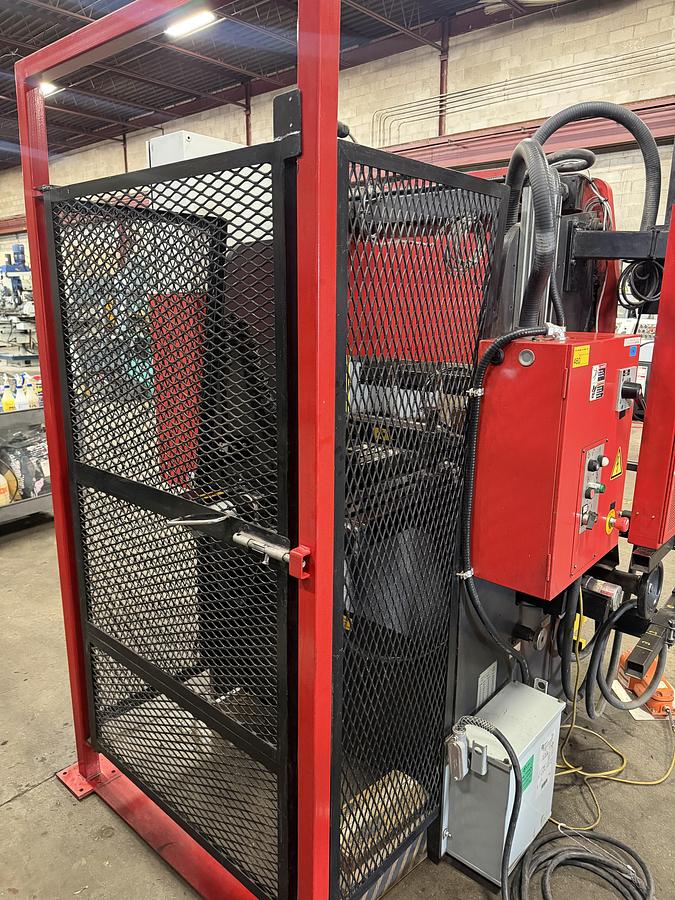

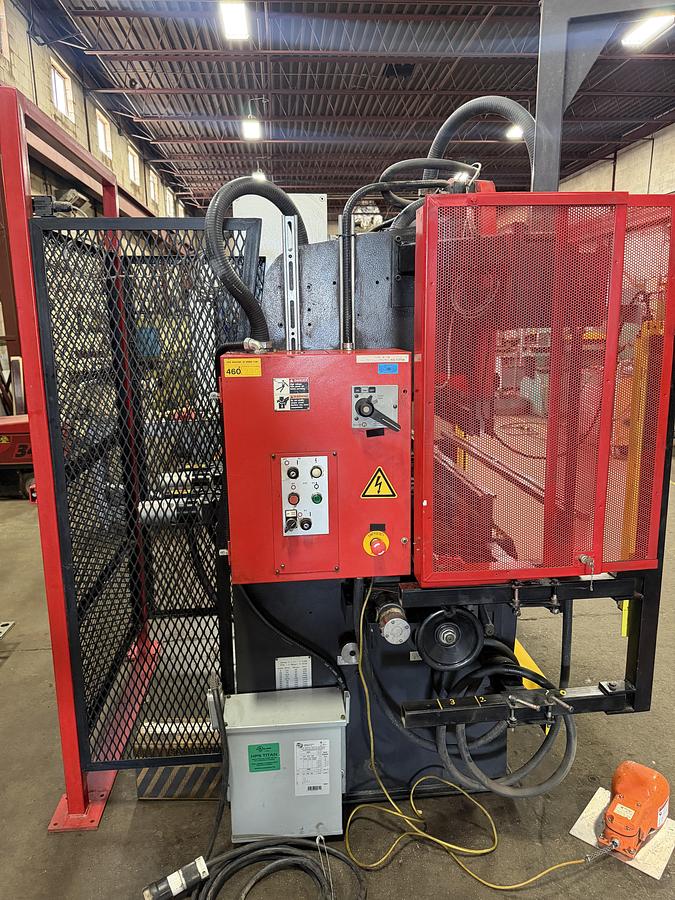

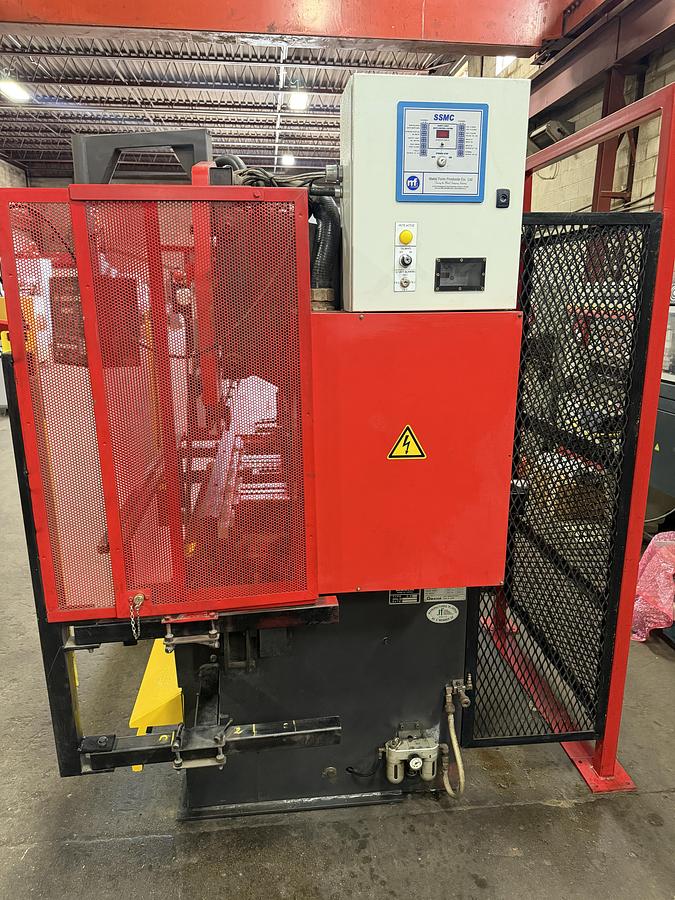

SIDE & REAR GAURDING
FOOT PEDAL CONTROL

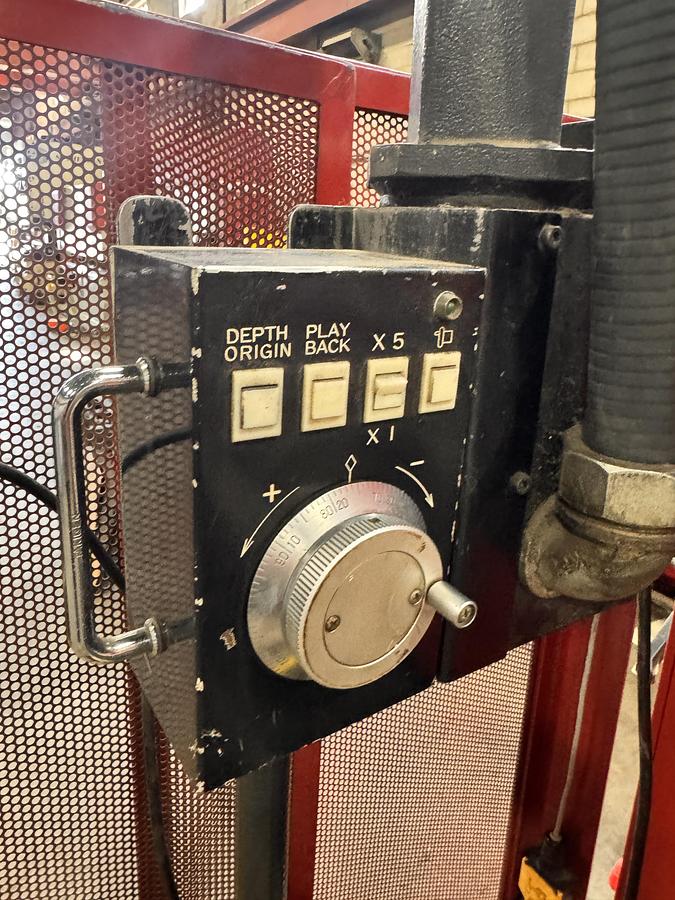

HAND REMOTE
BOTTOM DIE
THIS MACHINE IS IN VERY GOOD CONDITION AND CAN BE VIEWED UNDER POWER IN OUR WAREHOUSE!
The AMADA RG-35S is a used 38-ton hydraulic press brake designed for precision bending tasks. This machine features an NC-9EX II CNC 3-axis backgauge control system, providing enhanced accuracy and efficiency. It includes three backgauge fingers to ensure proper material alignment and bending consistency. Safety is prioritized with safety light curtains and side and rear guarding to protect operators during use. The press brake is controlled via a foot pedal and a convenient hand remote, offering flexibility in operation. The machine comes with a bottom die, and its robust construction ensures long-term reliability. With a table length of 47.3 inches and a maximum bending length of 49.3 inches, this press brake is suitable for a variety of applications. It has a throat depth of 7.88 inches and a stroke length of 3.94 inches, allowing for a wide range of bending operations. Operating at 460V/3/60, the machine weighs approximately 3,500 lbs. This AMADA RG-35S is in very good condition and can be viewed under power in our warehouse, providing potential buyers the opportunity to see it in action.
