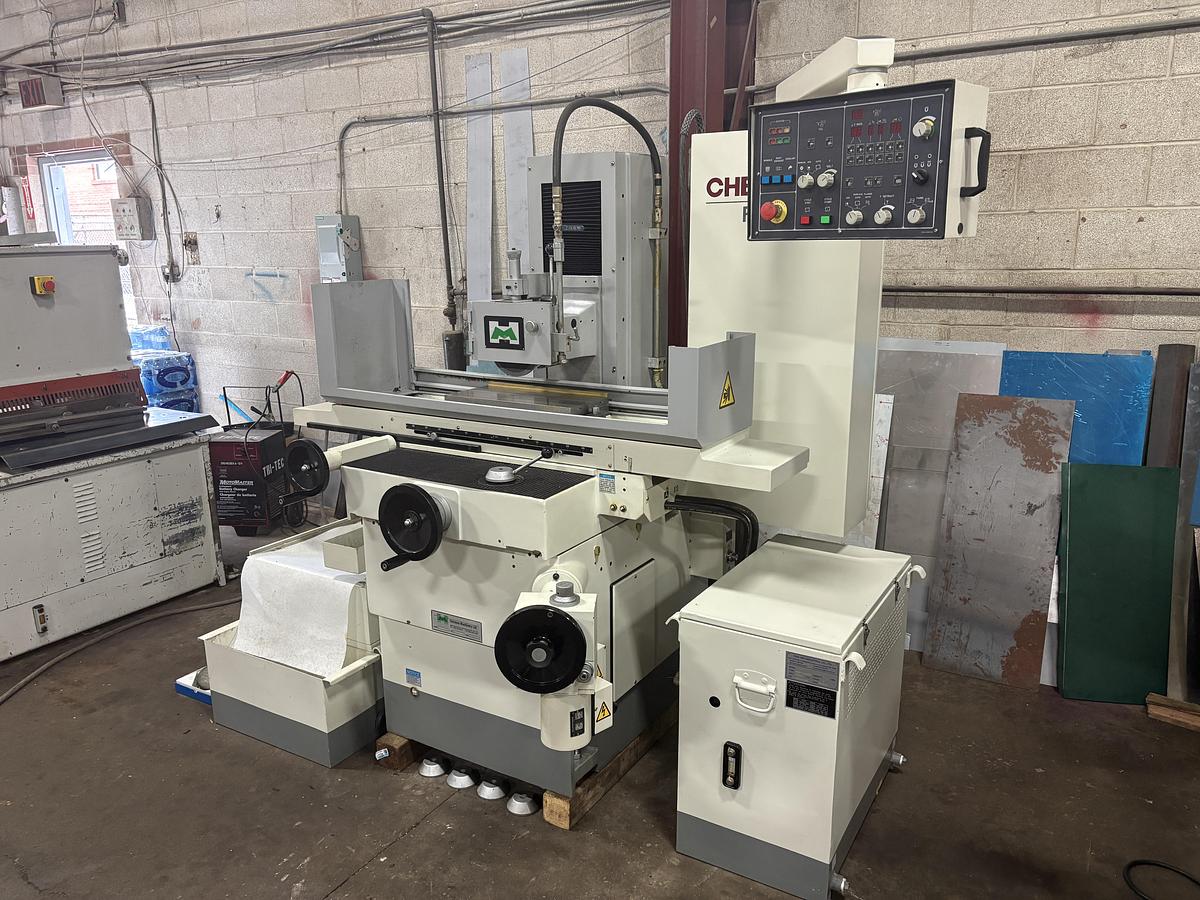

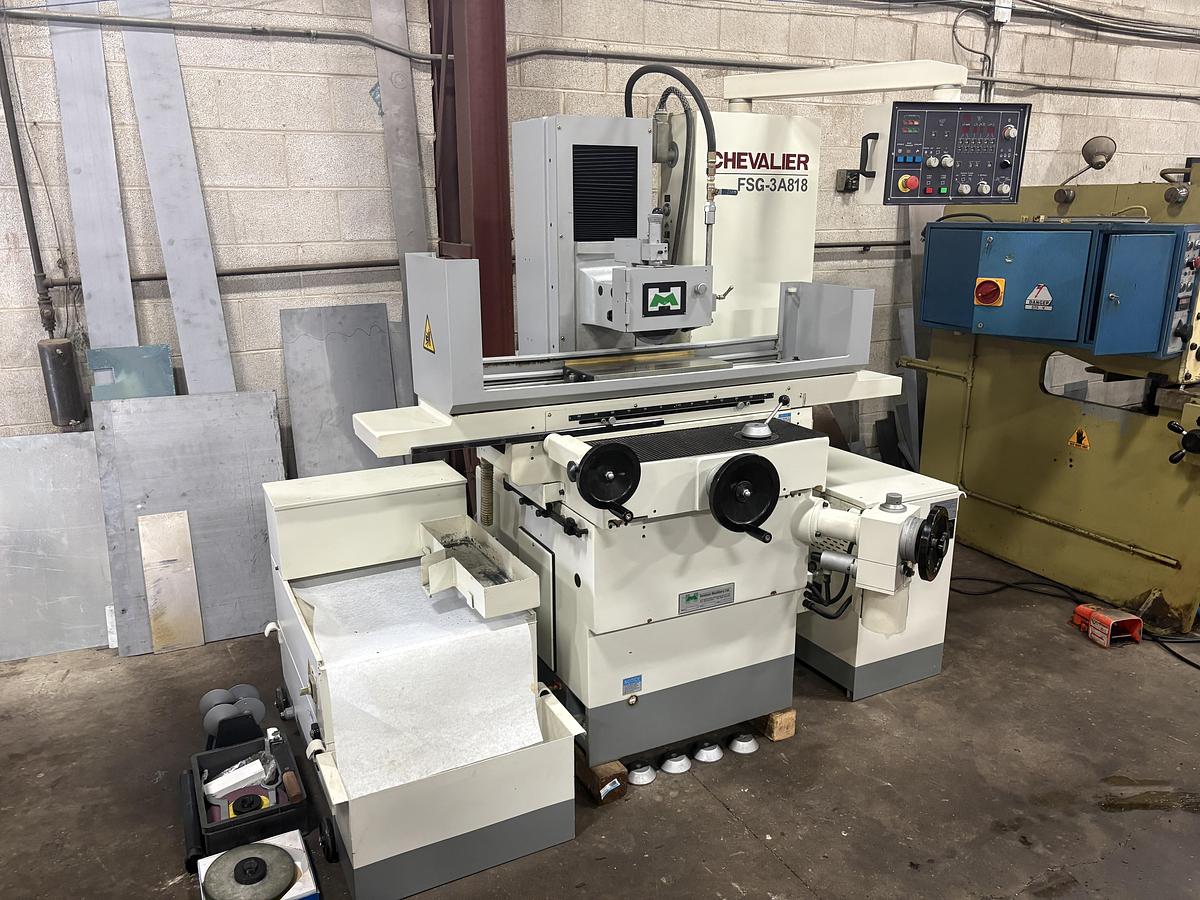

8" x 18", CHEVALIER, 2020, FSG-3A818, AUTOMATIC SURFACE GRINDER
Specifications
| Manufacturer | CHEVALIER |
| Model | FSG-3A818 |
| Year | 2020 |
| Stock Number | 10063 |
| TABLE SIZE | 8" x 18" |
| MAX. X TRAVEL DISTANCE | 19.7" |
| MAX. Y TRAVEL DISTANCE | 8.9" |
| MAX. Z TRAVEL DISTANCE | 17.7" (TABLE TO SPINDLE CENTERLINE) |
| TABLE LOAD CAPACITY | 550 LB |
| TABLE SPEED | 16-82 FPM |
| MAX. SPINDLE SPEED | 3450 RPM |
| MOTOR | 2 HP |
| GRINDING WHEEL | 8" × 1/2" × 1-1/4" BORE |
| APPROX WEIGHT | 2900 LB |
| ELECTRICS | 600/3/60 |
Equipped With
- IN MINT CONDITION !

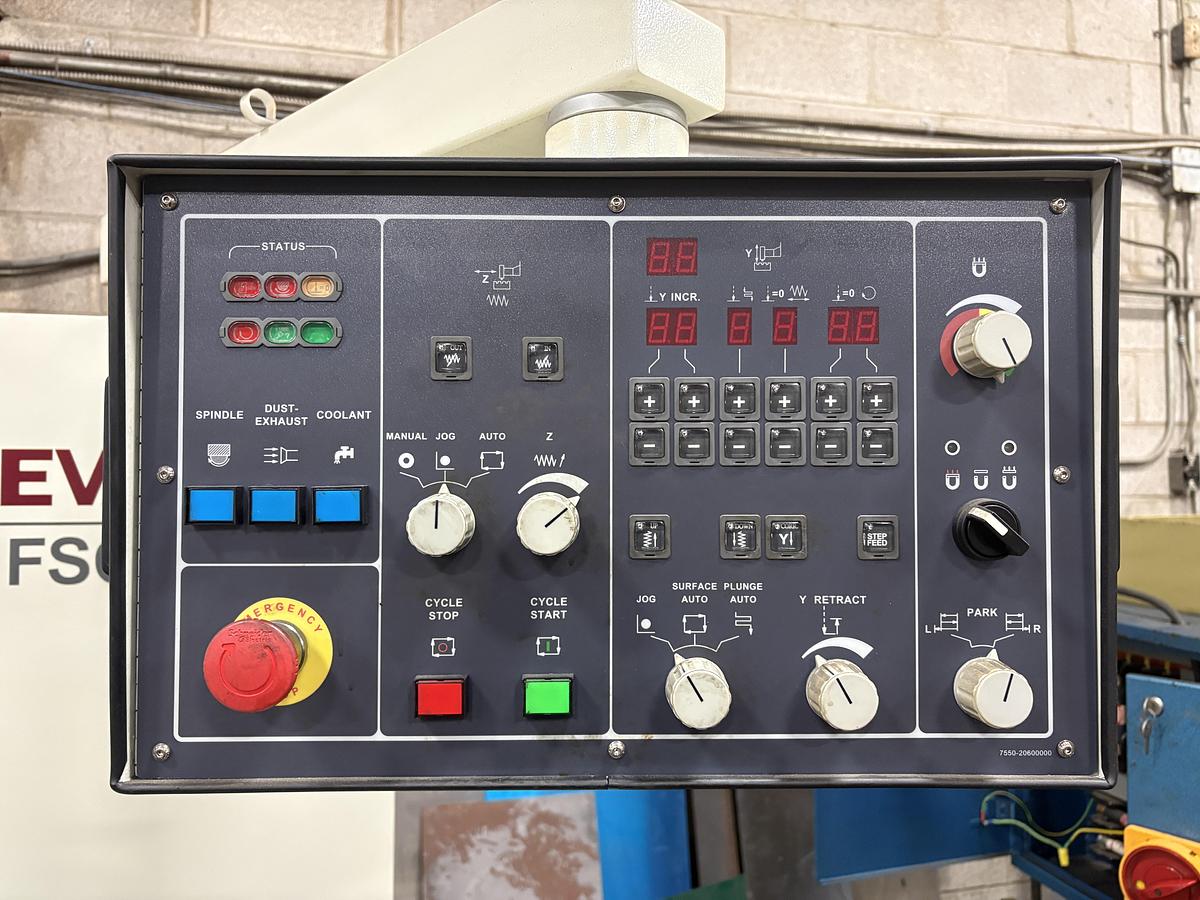

3-AXIS AUTOMATIC GRINDER

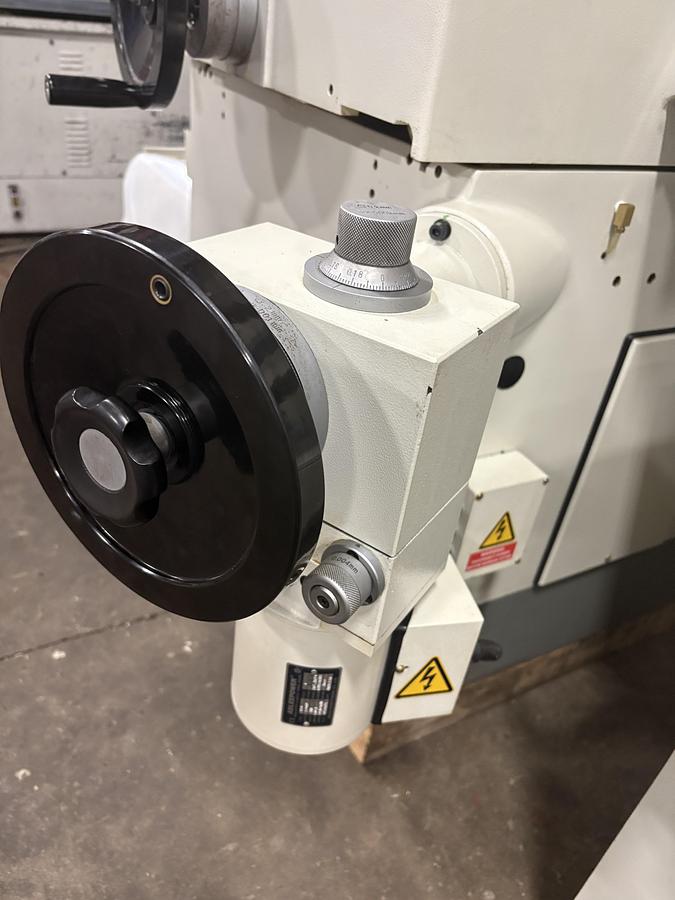

AUTOMATIC DOWNFEED

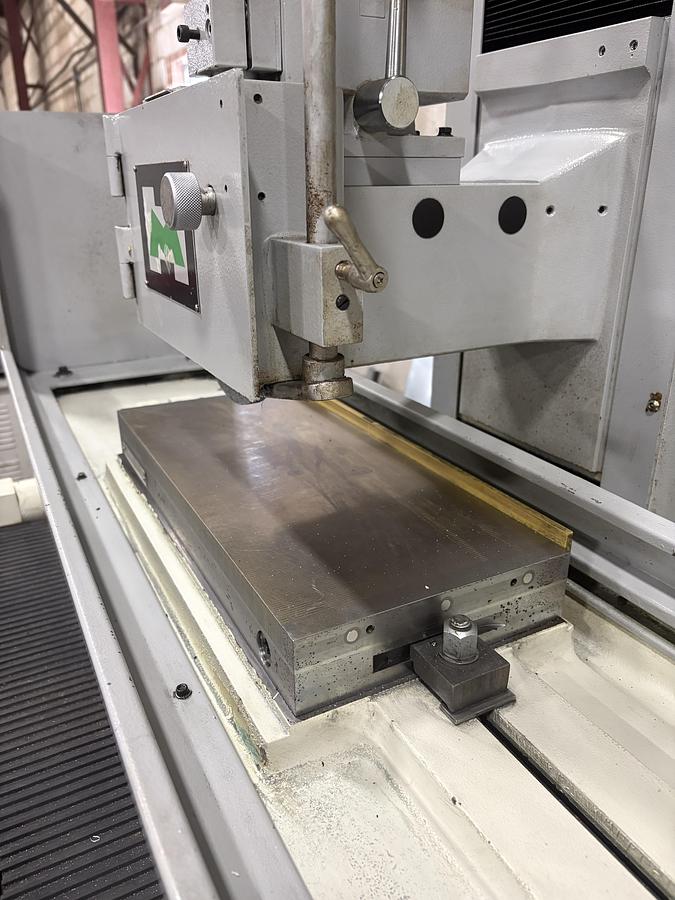

MAGNETIC CHUCK

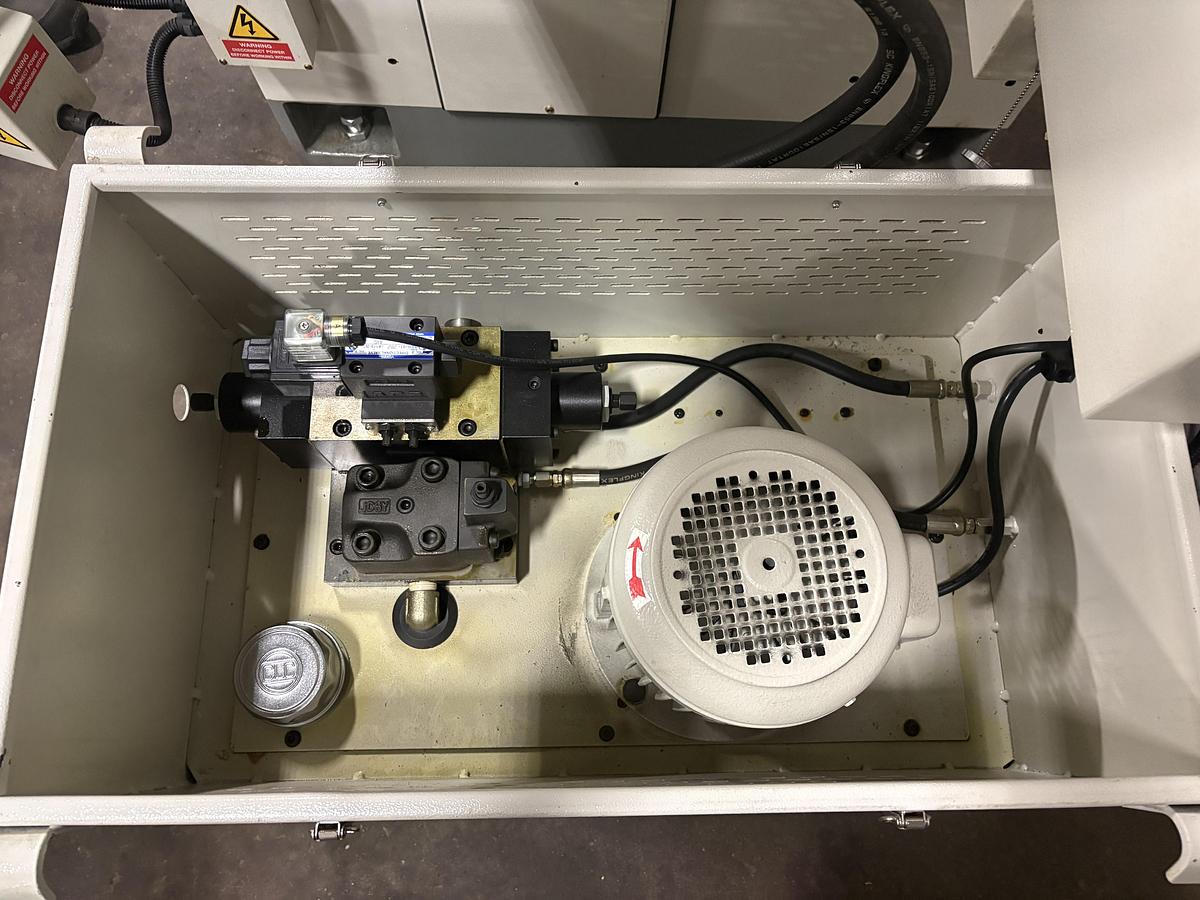

HYDRAULIC TABLE
COOLANT SYSTEM

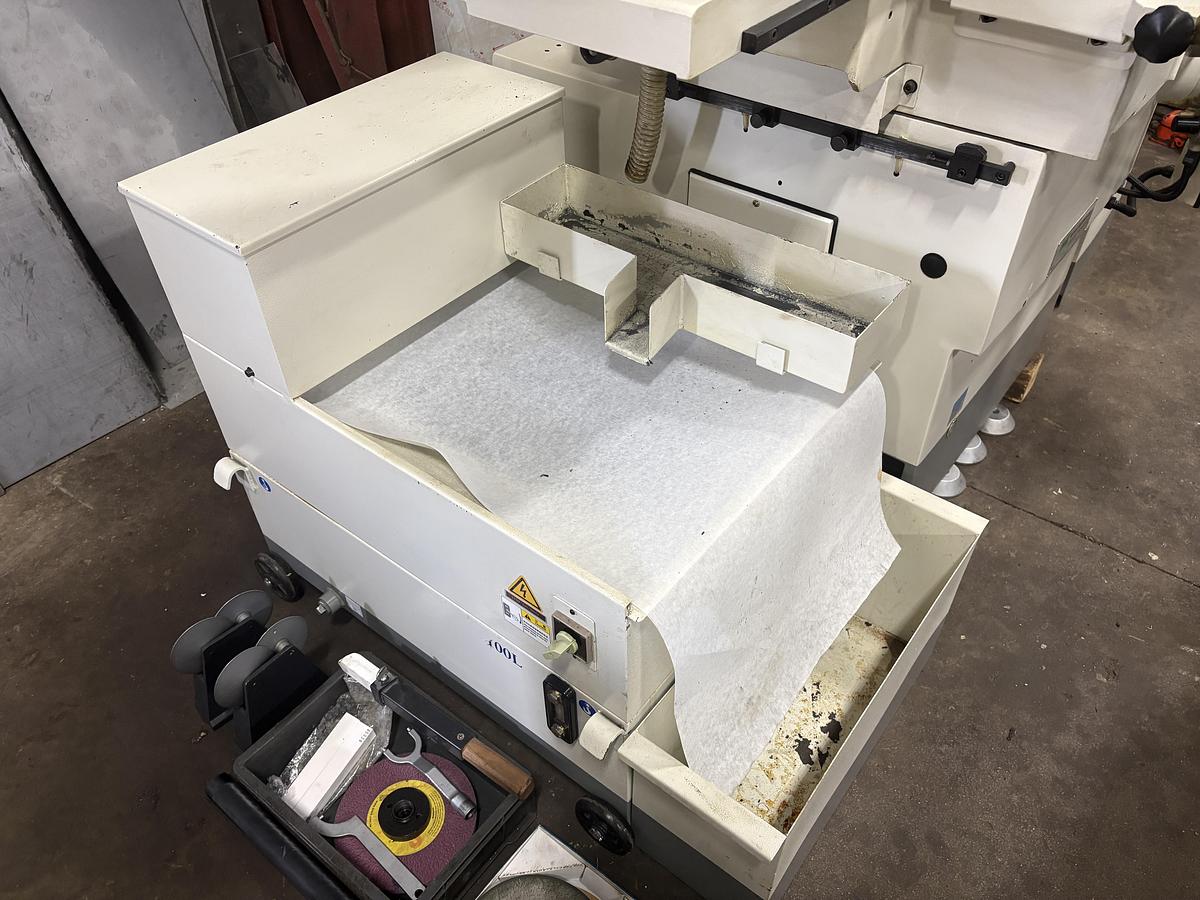

FILTER CLOTH FILTRATION SYSTEM

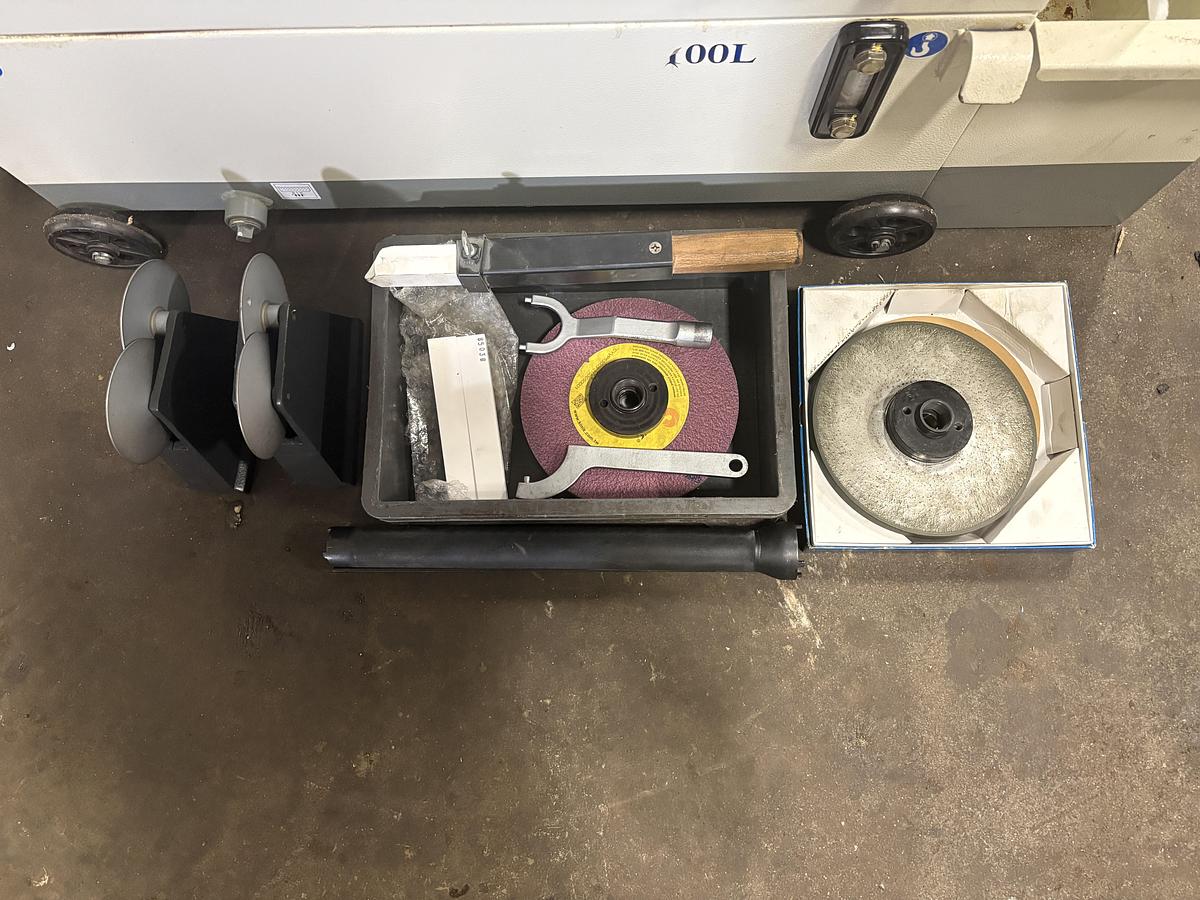

WHEEL DRESSER
The 2020 Chevalier FSG-3A818 is an automatic surface grinder that offers improved efficiency with its three-axis automatic operation and automatic downfeed features. This used model comes with an 8" x 18" table size and supports a maximum X travel distance of 19.7" and a Y travel distance of 8.9". The maximum Z travel distance, from table to spindle centerline, is 17.7". It can handle a table load capacity of up to 550 pounds, making it suitable for various industrial grinding tasks. Equipped with a magnetic chuck and hydraulic table, the grinder ensures precision and stability during operation. This model also features a coolant system and filter cloth filtration system, effectively managing debris and maintaining the longevity of both the machine and components. A wheel dresser is included, allowing for regular maintenance of the grinding wheel, which measures 8" × 1/2" × 1-1/4" bore. Powered by a 2 HP motor, the Chevalier delivers a maximum spindle speed of 3450 RPM, and the table speed ranges from 16 to 82 FPM. With an approximate weight of 2900 pounds, and requiring 600/3/60 electrics for operation, the FSG-3A818 is a robust choice for those in need of a reliable automatic surface grinder.
